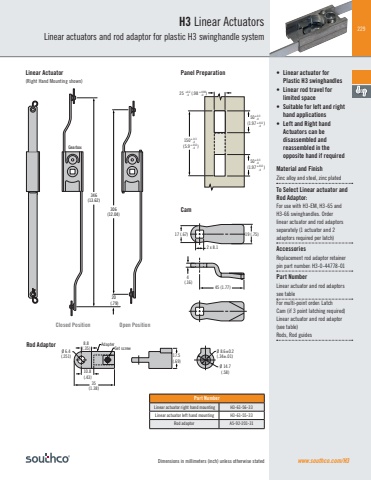

229Ø 6.4(.251)8.8(.35) AdapterSet screw10.8(.43)35(1.38)17.5 (.69)Ø 8.6±0.2(.34±.01)Ø 14.7(.58)306(12.04)346(13.62)20 (.79)GearboxPart Number Linear actuator right hand mounting H3-61-56-33 Linear actuator left hand mounting H3-61-55-33Rod adaptor A5-92-201-31www.southco.com/H3H3 Linear ActuatorsLinear actuators and rod adaptor for plastic H3 swinghandle system• Linear actuator for Plastic H3 swinghandles • Linear rod travel forlimited space • Suitable for left and right hand applications• Left and Right hand Actuators can be disassembled and reassembled in the opposite hand if requiredMaterial and FinishZinc alloy and steel, zinc plated To Select Linear actuator and Rod Adaptor:For use with H3-EM, H3-65 and H3-66 swinghandles. Order linear actuator and rod adaptors separately (1 actuator and 2 adaptors required per latch)AccessoriesReplacement rod adaptor retainer pin part number: H3-0-44778-01Part Number Linear actuator and rod adaptors see tableFor multi-point order: Latch Cam (if 3 point latching required) Linear actuator and rod adaptor (see table)Rods, Rod guides Linear Actuator(Right Hand Mounting shown)Closed Position Open PositionPanel PreparationRod AdaptorCam150 (5.9 )25 (.98 ) +0.2-0+.0.3-0+.008-0+.012-050 (1.97 )+.0.3-0+.012-050 (1.97 )+.0.3-0+.012-017 (.67)2 x 8.14 (.16)19 (.75)45 (1.77)Dimensions in millimeters (inch) unless otherwise stated
