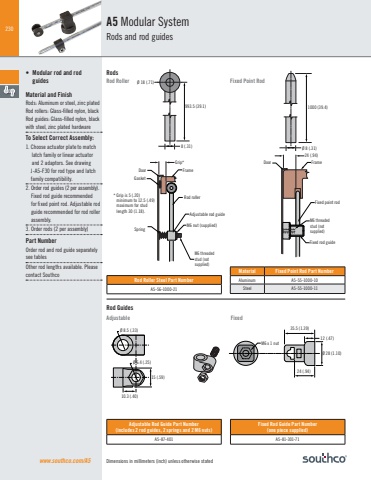

230RodsRod GuidesRod Roller Fixed Point RodMaterial Fixed Point Rod Part NumberAluminum A5-55-1000-10Steel A5-55-1000-11Fixed Rod Guide Part Number (one piece supplied)A5-81-301-71Rod Roller Steel Part NumberA5-56-1000-21Adjustable Rod Guide Part Number (includes 2 rod guides, 2 springs and 2 M6 nuts)A5-87-401M6 threadedstud (not supplied)SpringDoor FrameGrip*M6 nut (supplied)Rod rollerAdjustable rod guideØ 18 (.71) 993.5 (39.1) 8 (.31)Gasket* Grip is 5 (.20) minimum to 12.5 (.49) maximum for stud length 30 (1.18).Adjustable FixedDimensions in millimeters (inch) unless otherwise statedA5 Modular SystemRods and rod guides• Modular rod and rod guidesMaterial and FinishRods: Aluminum or steel, zinc platedRod rollers: Glass-filled nylon, blackRod guides: Glass-filled nylon, black with steel, zinc plated hardware To Select Correct Assembly:1. Choose actuator plate to match latch family or linear actuator and 2 adaptors. See drawing J-A5-F30 for rod type and latch family compatibility.2. Order rod guides (2 per assembly).Fixed rod guide recommended for fixed point rod. Adjustable rod guide recommended for rod roller assembly.3. Order rods (2 per assembly)Part Number Order rod and rod guide separately see tablesOther rod lengths available. Please contact Southcowww.southco.com/A5M6 threadedstud (not supplied)Door FrameFixed rod guideFixed point rod1000 (39.4) Ø 8 (.31)24 (.94)35.5 (1.39)Ø 28 (1.10)12 (.47)M6 x 1 nut24 (.94)Ø 8.5 (.33)Ø 6.4 (.25)15 (.59)10.3 (.40)
