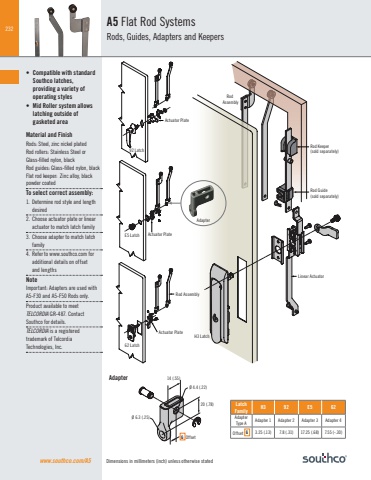

232Rod AssemblyActuator Plate92 LatchE5 Latch62 LatchH3 LatchRod Keeper(sold separately)Actuator PlateActuator PlateRod Guide(sold separately)Rod AssemblyLinear ActuatorAdapterØ 4.4 (.22)14 (.55)20 (.78)Ø 6.3 (.25)G OffsetLatchFamily H3 92 E5 62Adapter Type A Adapter 1 Adapter 2 Adapter 3 Adapter 4Offset G 3.25 (.13) 7.8 (.31) 17.25 (.68) 7.55 (-.30)AdapterA5 Flat Rod SystemsRods, Guides, Adapters and Keepers• Compatible with standardSouthco latches, providing a variety of operating styles• Mid Roller system allows latching outside of gasketed areaMaterial and FinishRods: Steel, zinc nickel platedRod rollers: Stainless Steel or Glass-filled nylon, blackRod guides: Glass-filled nylon, blackFlat rod keeper: Zinc alloy, black powder coatedTo select correct assembly:1. Determine rod style and length desired2. Choose actuator plate or linear actuator to match latch family3. Choose adapter to match latch family4. Refer to www.southco.com for additional details on offset and lengthsNoteImportant: Adapters are used with A5-F30 and A5-F50 Rods only.Product available to meetTELCORDIA GR-487. Contact Southco for details.TELCORDIA is a registered trademark of Telcordia Technologies, Inc.www.southco.com/A5 Dimensions in millimeters (inch) unless otherwise stated
