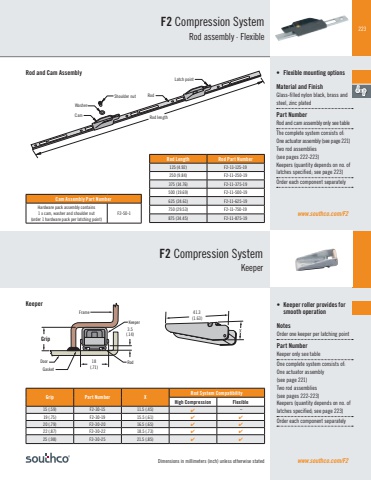

223Dimensions in millimeters (inch) unless otherwise statedF2 Compression SystemRod assembly · Flexiblewww.southco.com/F2www.southco.com/F23.5(.14)18(.71)GripFrameKeeperGasketDoor Rod 41.3(1.63)XGrip Part Number X Rod System CompatibilityHigh Compression Flexible15 (.59) F2-30-15 11.5 (.45) ✔ ~19 (.75) F2-30-19 15.5 (.61) ✔ ✔20 (.79) F2-30-20 16.5 (.65) ✔ ✔22 (.87) F2-30-22 18.5 (.73) ✔ ✔25 (.98) F2-30-25 21.5 (.85) ✔ ✔• Flexible mounting options Material and FinishGlass-filled nylon black, brass and steel, zinc platedPart NumberRod and cam assembly only see tableThe complete system consists of:One actuator assembly (see page 221)Two rod assemblies (see pages 222-223) Keepers (quantity depends on no. of latches specified; see page 223)Order each component separatelyKeeperRod lengthShoulder nutWasherCamLatch pointRodCam Assembly Part NumberHardware pack assembly contains 1 x cam, washer and shoulder nut (order 1 hardware pack per latching point)F2-50-1Rod and Cam AssemblyRod Length Rod Part Number125 (4.92) F2-11-125-19250 (9.84) F2-11-250-19375 (14.76) F2-11-375-19500 (19.69) F2-11-500-19625 (24.61) F2-11-625-19750 (29.53) F2-11-750-19875 (34.45) F2-11-875-19F2 Compression SystemKeeper• Keeper roller provides for smooth operationNotesOrder one keeper per latching pointPart NumberKeeper only see tableOne complete system consists of:One actuator assembly (see page 221)Two rod assemblies (see pages 222-223) Keepers (quantity depends on no. of latches specified; see page 223)Order each component separately
