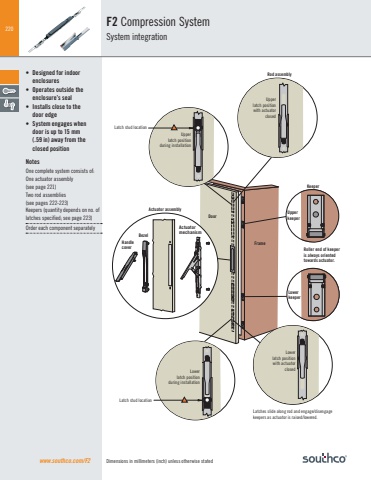

220UpperkeeperUpperlatch positionduring installationLowerkeeperRoller end of keeperis always oriented towards actuator.ActuatormechanismLatches slide along rod and engage/disengage keepers as actuator is raised/lowered.Upperlatch positionwith actuatorclosedLowerlatch positionwith actuatorclosed Lowerlatch positionduring installationLatch stud locationLatch stud locationHandlecoverActuator assemblyRod assemblyKeeperBezelDoorFramewww.southco.com/F2 Dimensions in millimeters (inch) unless otherwise statedF2 Compression SystemSystem integration• Designed for indoor enclosures• Operates outside the enclosure’s seal• Installs close to the door edge• System engages when door is up to 15 mm (.59 in) away from the closed positionNotesOne complete system consists of:One actuator assembly (see page 221)Two rod assemblies (see pages 222-223) Keepers (quantity depends on no. of latches specified; see page 223)Order each component separately
