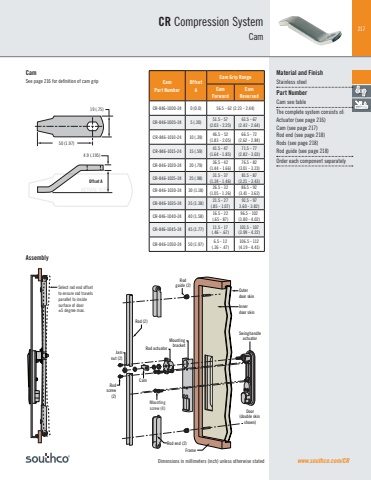

217CamPart NumberOffsetACam Grip RangeCam ForwardCam ReversedCR-846-1000-24 0 (0.0) 56.5 - 62 (2.23 - 2.44)CR-846-1005-24 5 (.20) 51.5 - 57 (2.03 - 2.25)61.5 - 67 (2.42 - 2.64)CR-846-1010-24 10 (.39) 46.5 - 52 (1.83 - 2.05)66.5 - 72 (2.62 - 2.84)CR-846-1015-24 15 (.59) 41.5 - 47 (1.64 - 1.85)71.5 - 77 (2.82 - 3.03)CR-846-1020-24 20 (.79) 36.5 - 42 (1.44 - 1.66)76.5 - 82 (3.01 - 3.23)CR-846-1025-24 25 (.98) 31.5 - 37 (1.24 - 1.46)81.5 - 87 (3.21 - 3.43)CR-846-1030-24 30 (1.18) 26.5 - 32 (1.05 - 1.26)86.5 - 92 (3.41 - 3.62)CR-846-1035-24 35 (1.38) 21.5 - 27 (.85 - 1.07)91.5 - 97 3.60 - 3.82)CR-846-1040-24 40 (1.58) 16.5 - 22 (.65 - 87)96.5 - 102 (3.80 - 4.02)CR-846-1045-24 45 (1.77) 11.5 - 17 (.46 - .67)101.5 - 107 (3.99 - 4.22)CR-846-1050-24 50 (1.97) 6.5 - 12 (.26 - .47)106.5 - 112 (4.19 - 4.41)19 (.75)50 (1.97) Offset A4.9 (.195)CamSee page 216 for definition of cam gripACTUAL SIZEDoor(double skin shown)SwinghandleactuatorFrameRodguide (2)Rod end (2)Rod (2)Rod actuator MountingbracketCamJamnut (2)Mountingscrew (4)Innerdoor skinOuterdoor skinRodscrew(2)Assemblywww.southco.com/CRSelect rod end offset to ensure rod travels parallel to inside surface of door ±5 degree max.Dimensions in millimeters (inch) unless otherwise statedCR Compression SystemCam Material and FinishStainless steelPart NumberCam see tableThe complete system consists of: Actuator (see page 216)Cam (see page 217)Rod end (see page 218)Rods (see page 218)Rod guide (see page 218)Order each component separately
