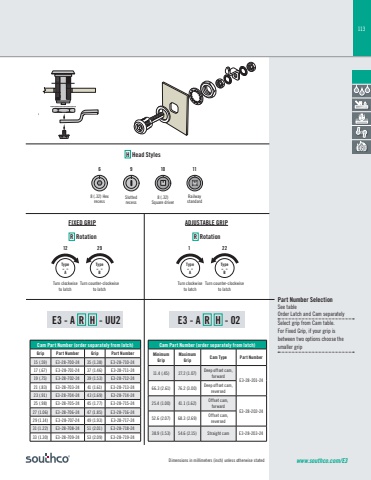

113Cam Part Number (order separately from latch)Minimum GripMaximum Grip Cam Type Part Number11.4 (.45) 27.2 (1.07) Deep offset cam, forwardE3-28-201-2466.3 (2.61) 76.2 (3.00) Deep offset cam, reversed25.4 (1.00) 41.1 (1.62) Offset cam, forwardE3-28-202-2452.6 (2.07) 68.3 (2.69) Offset cam, reversed38.9 (1.53) 54.6 (2.15) Straight cam E3-28-203-24Cam Part Number (order separately from latch)Grip Part Number Grip Part Number15 (.59) E3-28-700-24 35 (1.38) E3-28-710-2417 (.67) E3-28-701-24 37 (1.46) E3-28-711-2419 (.75) E3-28-702-24 39 (1.53) E3-28-712-2421 (.83) E3-28-703-24 41 (1.61) E3-28-713-2423 (.91) E3-28-704-24 43 (1.69) E3-28-714-2425 (.98) E3-28-705-24 45 (1.77) E3-28-715-2427 (1.06) E3-28-706-24 47 (1.85) E3-28-716-2429 (1.14) E3-28-707-24 49 (1.93) E3-28-717-2431 (1.22) E3-28-708-24 51 (2.01) E3-28-718-2433 (1.30) E3-28-709-24 53 (2.09) E3-28-719-24Turn clockwiseto latchTurn counter-clockwiseto latchType“B”Type“A”Turn clockwiseto latchTurn counter-clockwiseto latchType“B”Type“A”Part Number SelectionSee tableOrder Latch and Cam separatelySelect grip from Cam table.For Fixed Grip, if your grip is between two options choose the smaller gripFIXED GRIP ADJUSTABLE GRIPR RotationH Head StylesR RotationDimensions in millimeters (inch) unless otherwise stated www.southco.com/E3E3 - A R H - UU2 E3 - A R H - 0212 29 1 228 (.32) Hexrecess68 (.32) Square driver10Slotted recess9Railway standard11
