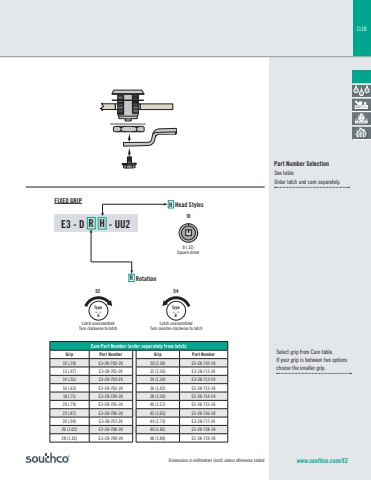

111Bwww.southco.com/E3H Head StylesE3 - D R H - UU2R RotationSelect grip from Cam table.If your grip is between two options choose the smaller grip.8 (.32) Square driver10Type“B”Type“A”52 54Latch unassembledTurn counter-clockwise to latchLatch unassembledTurn clockwise to latchFIXED GRIPSee tableOrder latch and cam separately.Cam Part Number (order separately from latch)Grip Part Number Grip Part Number10 (.39) E3-28-700-24 30 (1.18) E3-28-710-2412 (.47) E3-28-701-24 32 (1.26) E3-28-711-2414 (.55) E3-28-702-24 34 (1.34) E3-28-712-2416 (.63) E3-28-703-24 36 (1.42) E3-28-713-2418 (.71) E3-28-704-24 38 (1.50) E3-28-714-2420 (.79) E3-28-705-24 40 (1.57) E3-28-715-2422 (.87) E3-28-706-24 42 (1.65) E3-28-716-2424 (.94) E3-28-707-24 44 (1.73) E3-28-717-2426 (1.02) E3-28-708-24 46 (1.81) E3-28-718-2428 (1.10) E3-28-709-24 48 (1.89) E3-28-719-24Part Number SelectionDimensions in millimeters (inch) unless otherwise stated
