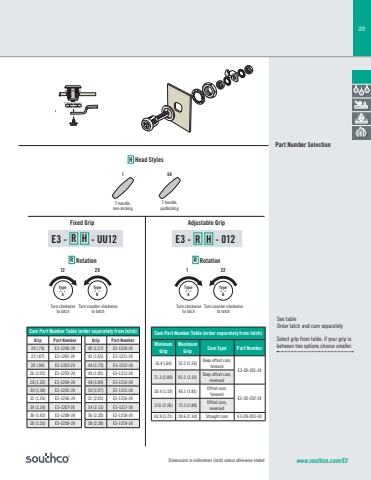

109www.southco.com/E3H Head StylesFixed Grip Adjustable GripR Rotation R RotationDimensions in millimeters (inch) unless otherwise statedCam Part Number Table (order separately from latch)Minimum GripMaximum Grip Cam Type Part Number16.4 (.64) 32.2 (1.26) Deep offset cam, forwardE3-28-201-2471.3 (2.80) 81.2 (3.19) Deep offset cam, reversed30.4 (1.19) 46.1 (1.81) Offset cam, forwardE3-28-202-2457.6 (2.26) 73.3 (2.88) Offset cam, reversed43.9 (1.72) 59.6 (2.34) Straight cam E3-28-203-24Cam Part Number Table (order separately from latch)Grip Part Number Grip Part Number20 (.79) E5-1200-24 40 (1.57) E5-1210-2422 (.87) E5-1201-24 42 (1.65) E5-1211-2424 (.94) E5-1202-24 44 (1.73) E5-1212-2426 (1.02) E5-1203-24 46 (1.81) E5-1213-2428 (1.10) E5-1204-24 48 (1.89) E5-1214-2430 (1.18) E5-1205-24 50 (1.97) E5-1215-2432 (1.26) E5-1206-24 52 (2.05) E5-1216-2434 (1.34) E5-1207-24 54 (2.13) E5-1217-2436 (1.42) E5-1208-24 56 (2.20) E5-1218-2438 (1.50) E5-1209-24 58 (2.28) E5-1219-24See tableOrder latch and cam separatelyE3 - R H - UU12Select grip from table, if your grip is between two options choose smaller.E3 - R H - 012T-handle, non-locking1T-handle, padlocking60Turn clockwiseto latchTurn counter-clockwiseto latchType“B”Type“A”Turn clockwiseto latchTurn counter-clockwiseto latchType“B”Type“A”12 29 1 22Part Number Selection
