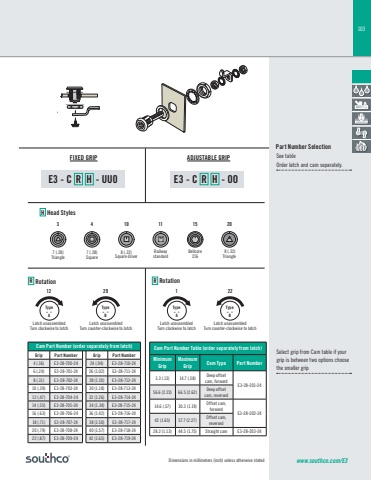

103www.southco.com/E3E3 - C R H - OOH Head StylesE3 - C R H - UU0R Rotation R RotationDimensions in millimeters (inch) unless otherwise statedSelect grip from Cam table if your grip is between two options choose the smaller grip7 (.28)Triangle37 (.28)Square48 (.32) Square driver10Railway standard11Bellcore21615 8 (.32) Triangle20Type“B”Type“A”Type“B”Type“A”12 29 1 22Latch unassembledTurn counter-clockwise to latchLatch unassembledTurn clockwise to latchLatch unassembledTurn counter-clockwise to latchLatch unassembledTurn clockwise to latchFIXED GRIP ADJUSTABLE GRIP See tableOrder latch and cam separately.Cam Part Number Table (order separately from latch)Minimum GripMaximum Grip Cam Type Part Number3.3 (.13) 14.7 (.58) Deep offset cam, forward E3-28-201-2456.6 (2.23) 66.5 (2.62) Deep offset cam, reversed14.6 (.57) 30.3 (1.19) Offset cam, forwardE3-28-202-2442 (1.65) 57.7 (2.27) Offset cam, reversed28.2 (1.13) 44.5 (1.75) Straight cam E3-28-203-24Cam Part Number (order separately from latch)Grip Part Number Grip Part Number4 (.16) E3-28-700-24 24 (.94) E3-28-710-246 (.24) E3-28-701-24 26 (1.02) E3-28-711-248 (.31) E3-28-702-24 28 (1.10) E3-28-712-2410 (.39) E3-28-703-24 30 (1.18) E3-28-713-2412 (.47) E3-28-704-24 32 (1.26) E3-28-714-2414 (.55) E3-28-705-24 34 (1.34) E3-28-715-2416 (.63) E3-28-706-24 36 (1.42) E3-28-716-2418 (.71) E3-28-707-24 38 (1.50) E3-28-717-2420 (.79) E3-28-708-24 40 (1.57) E3-28-718-2422 (.87) E3-28-709-24 42 (1.65) E3-28-719-24Part Number Selection
