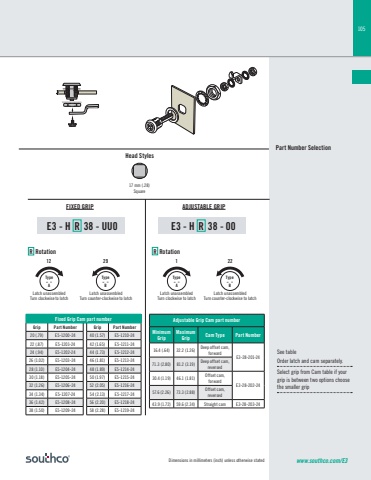

105www.southco.com/E3 Head StylesDimensions in millimeters (inch) unless otherwise statedAdjustable Grip Cam part numberMinimum GripMaximum Grip Cam Type Part Number16.4 (.64) 32.2 (1.26) Deep offset cam, forwardE3-28-201-2471.3 (2.80) 81.2 (3.19) Deep offset cam, reversed30.4 (1.19) 46.1 (1.81) Offset cam, forwardE3-28-202-2457.6 (2.26) 73.3 (2.88) Offset cam, reversed43.9 (1.72) 59.6 (2.34) Straight cam E3-28-203-24Fixed Grip Cam part numberGrip Part Number Grip Part Number20 (.79) E5-1200-24 40 (1.57) E5-1210-2422 (.87) E5-1201-24 42 (1.65) E5-1211-2424 (.94) E5-1202-24 44 (1.73) E5-1212-2426 (1.02) E5-1203-24 46 (1.81) E5-1213-2428 (1.10) E5-1204-24 48 (1.89) E5-1214-2430 (1.18) E5-1205-24 50 (1.97) E5-1215-2432 (1.26) E5-1206-24 52 (2.05) E5-1216-2434 (1.34) E5-1207-24 54 (2.13) E5-1217-2436 (1.42) E5-1208-24 56 (2.20) E5-1218-2438 (1.50) E5-1209-24 58 (2.28) E5-1219-24E3 - H R 38 - UU017 mm (.28)SquareE3 - H R 38 - 00See tableOrder latch and cam separately.Select grip from Cam table if your grip is between two options choose the smaller gripR Rotation R RotationType“B”Type“A”Type“B”Type“A”12 29 1 22Latch unassembledTurn counter-clockwise to latchLatch unassembledTurn clockwise to latchLatch unassembledTurn counter-clockwise to latchLatch unassembledTurn clockwise to latchFIXED GRIP ADJUSTABLE GRIPPart Number Selection
