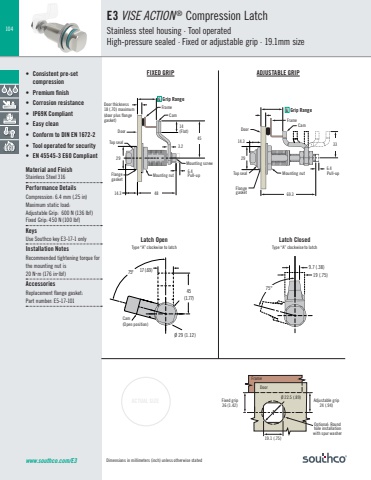

104www.southco.com/E36.43.21414.3199.714.3 454875°6.469.33329 29Ø 296.4 (.25)3.2 (.13)14 (.55)14.3(.58)19 (.75)9.7 (.38)14.3(.58)45(1.77)48(1.84)75°6.4 (.25)69.3(2.73)33(1.30)19 (.75)9.7 (.38)75°Ø 29 (1.12)17 (.69)45(1.77)75ºACTUAL SIZE19.1 (.75) Ø 22.5 (.89)Optional: Roundhole installation with spur washerFixed grip36 (1.42)Adjustable grip24 (.94)DoorFrameDimensions in millimeters (inch) unless otherwise statedG Grip RangeG Grip RangeFIXED GRIP ADJUSTABLE GRIPFlangegasketFlangegasketTop sealTop sealFrameFrameCamDoor DoorMounting nut Mounting nut Pull-up(Flat)Pull-up• Consistent pre-set compression• Premium finish• Corrosion resistance• IP69K Compliant• Easy clean• Conform to DIN EN 1672-2• Tool operated for security• EN 45545-3 E60 CompliantMaterial and FinishStainless Steel 316Performance DetailsCompression: 6.4 mm (.25 in)Maximum static load:Adjustable Grip: 600 N (136 lbf)Fixed Grip: 450 N (100 lbf)KeysUse Southco key E3-17-1 onlyInstallation NotesRecommended tightening torque for the mounting nut is20 Nm (176 inlbf)AccessoriesReplacement flange gasket:Part number: E5-17-101E3 VISE ACTION ® Compression LatchStainless steel housing · Tool operated High-pressure sealed · Fixed or adjustable grip · 19.1mm sizeLatch OpenType “A” clockwise to latchLatch ClosedType “A” clockwise to latchCamCam(Open position)Mounting screwDoor thickness18 (.70) maximum(door plus flange gasket)
