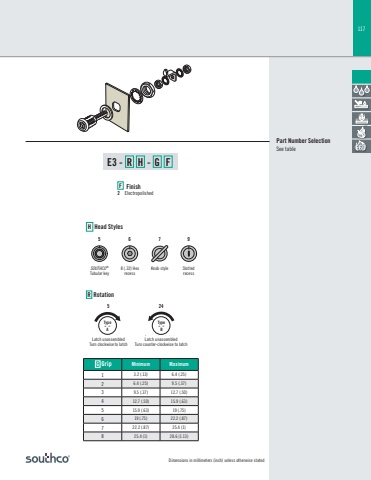

117Dimensions in millimeters (inch) unless otherwise statedG Grip Minimum Maximum1 3.2 (.13) 6.4 (.25)2 6.4 (.25) 9.5 (.37)3 9.5 (.37) 12.7 (.50)4 12.7 (.50) 15.9 (.63)5 15.9 (.63) 19 (.75)6 19 (.75) 22.2 (.87)7 22.2 (.87) 25.4 (1)8 25.4 (1) 28.6 (1.13)E3 - R H - G FF Finish2 ElectropolishedH Head StylesSOUTHCO Knob style ®Tubular key5Slotted recess98 (.32) Hexrecess6 7Type“A”Type“B”Turn clockwiseto latchTurn counter-clockwiseto latchR Rotation5 24Latch unassembledTurn counter-clockwise to latchLatch unassembledTurn clockwise to latchType“A”Type“B”Turn clockwiseto latchTurn counter-clockwiseto latchPart Number SelectionSee table
