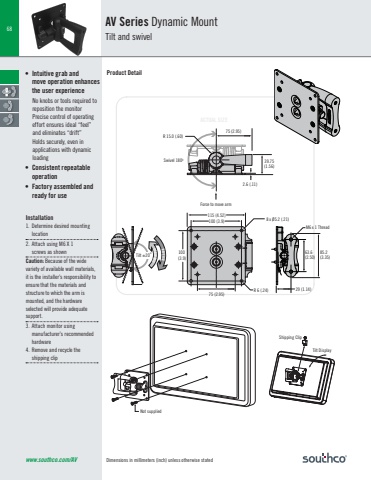

Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZE68www.southco.com/AVShipping ClipNot suppliedTilt Display100 (3.9)75 (2.95)29 (1.14)63.6(2.50)85.2(3.35)8 x Ø5.2 (.21)R 6 (.24)75 (2.95)R 15.0 (.60)115 (4.52)2.6 (.11)39.75(1.56)Swivel 1800Tilt ±20°Force to move armM6 x 1 Thread100 (3.9)REVERSEFORWARD• Intuitive grab and move operation enhances the user experienceNo knobs or tools required to reposition the monitorPrecise control of operating effort ensures ideal “feel” and eliminates “drift”Holds securely, even in applications with dynamic loading• Consistent repeatable operation• Factory assembled and ready for useAV Series Dynamic MountTilt and swivelProduct DetailInstallation1. Determine desired mounting location2. Attach using M6 X 1 screws as shownCaution: Because of the wide variety of available wall materials, it is the installer’s responsibility to ensure that the materials and structure to which the arm is mounted, and the hardware selected will provide adequate support.3. Attach monitor using manufacturer’s recommended hardware4. Remove and recycle theshipping clip
