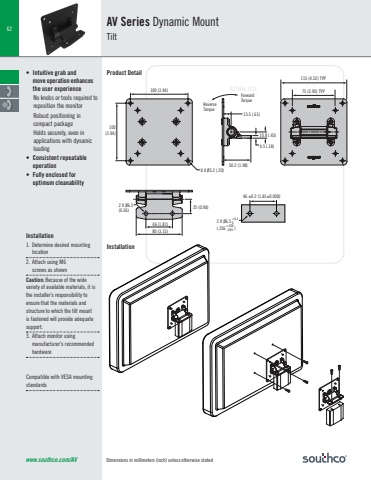

Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZE62www.southco.com/AVForwardTorque15.5 (.61)10.8 (.43)4.5 (.18)50.2 (1.98)8 X Ø5.2 (.20)100 (3.94)100(3.94)2 X Ø6.5(0.26) 25 (0.98)46 ±0.2 (1.81±0.008)2 X Ø6.5(.256 )+0.10 46 (1.81)80 (3.15)ReverseTorque+.004-.00075 (2.95) TYP115 (4.52) TYP • Intuitive grab and move operation enhances the user experienceNo knobs or tools required to reposition the monitorRobust positioning in compact package Holds securely, even in applications with dynamic loading• Consistent repeatable operation• Fully enclosed for optimum cleanabilityProduct DetailInstallationInstallation1. Determine desired mounting location2. Attach using M6 screws as shownCaution: Because of the wide variety of available materials, it is the installer’s responsibility to ensure that the materials and structure to which the tilt mount is fastened will provide adequate support.3. Attach monitor using manufacturer’s recommended hardwareCompatible with VESA mounting standardsAV Series Dynamic MountTilt
