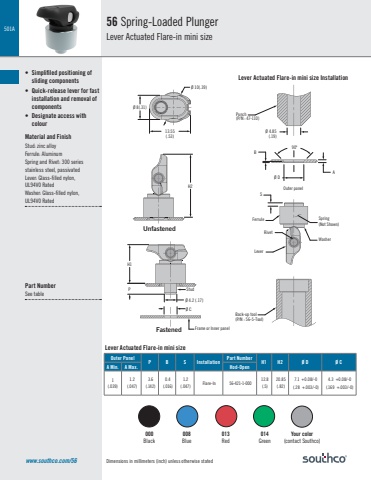

501ADimensions in millimeters (inch) unless otherwise statedØ 10(.39)Ø 4.85(.19)Ø 4.2 (.17)Ø CØ DBASH2H1P90ºØ 8(.31)13.55(.53)www.southco.com/5656 Spring-Loaded Plunger Lever Actuated Flare-in mini size• Simplifiled positioning ofsliding components• Quick-release lever for fastinstallation and removal ofcomponents• Designate access withcolourMaterial and FinishStud: zinc alloyFerrule: AluminumSpring and Rivet: 300 seriesstainless steel, passivatedLever: Glass-filled nylon,UL94V0 RatedWasher: Glass-filled nylon,UL94V0 RatedPart NumberSee table000Black 008Blue013Red014GreenYour color (contact Southco)FastenedLever Actuated Flare-in mini size InstallationLever Actuated Flare-in mini sizeUnfastenedOuter PanelP B S InstallationPart NumberH1 H2 Ø D Ø C A Min. A Max. Hod-Open1 (.039)1.2 (.047)3.6 (.142)0.4 (.016)1.2 (.047) Flare-In 56-421-1-000 12.8 (.5)20.85 (.82)7.1 +0.08/-0(.28 +.003/-0)4.3 +0.08/-0(.169 +.003/-0)Frame or Inner panelStudWasherRivetFerrulePunch(P/N : 47-110)LeverBack-up tool(P/N : 56-5-Tool)Outer panelSpring(Not Shown)
