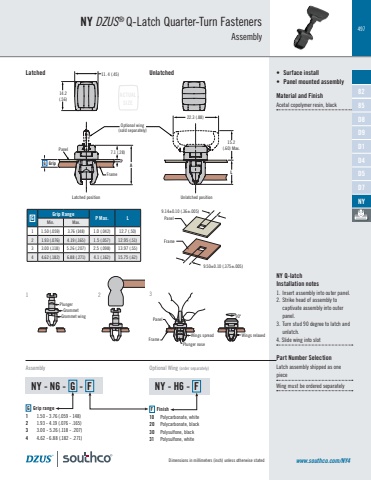

497Dimensions in millimeters (inch) unless otherwise statedACTUALSIZEPlungerGrommetGrommet wingWings spread Wings relaxedPlunger nosePanelFrame90ºPlungerGrommetGrommet wingWings spread Wings relaxedPlunger nosePanelFrame90ºPlungerGrommetGrommet wingWings spread Wings relaxedPlunger nosePanelFrame90ºPlungerGrommetGrommet wingWings spread Wings relaxedPlunger nosePanelFrame90º• Surface install• Panel mounted assemblyMaterial and FinishAcetal copolymer resin, blackNY - N6 - G - FF Finish10 Polycarbonate, white20 Polycarbonate, black30 Polysulfone, black31 Polysulfone, whiteG Grip range1 1.50 - 3.76 (.059 - 148)2 1.93 - 4.19 (.076 - .165)3 3.00 - 5.26 (.118 - .207)4 4.62 - 6.88 (.182 - .271)NY DZUS® Q-Latch Quarter-Turn FastenersAssemblywww.southco.com/NY4Part Number SelectionLatch assembly shipped as one pieceWing must be ordered separately9.14±0.10 (.36±.005)9.50±0.10 (.375±.005)FrameG PanelGrip Range P Max. LMin. Max.1 1.50 (.059) 3.76 (148) 1.0 (.042) 12.7 (.50)2 1.93 (.076) 4.19 (.165) 1.5 (.057) 12.95 (.51)3 3.00 (.118) 5.26 (.207) 2.5 (.098) 13.97 (.55)4 4.62 (.182) 6.88 (.271) 4.1 (.162) 15.75 (.62)NY - H6 - FAssembly Optional Wing (order separately)14.2(.56)15.2(.60) Max.11. 4 (.45)22.3 (.88)Optional wing(sold separately)Panel 7.1 (.28) LGripFrameGLatched position Unlatched positionPALatched1 2 3UnlatchedNY Q-latchInstallation notes1. Insert assembly into outer panel.2. Strike head of assembly to captivate assembly into outer panel.3. Turn stud 90 degree to latch and unlatch.4. Slide wing into slotD1D4D5D7NY82D8D985
