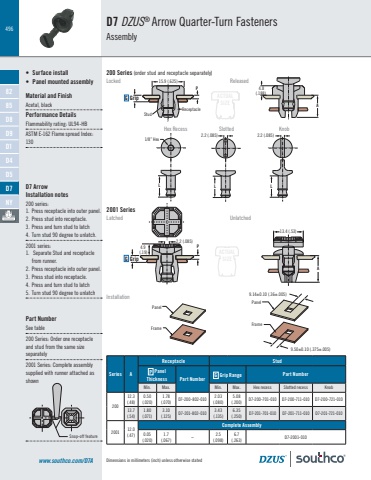

496Dimensions in millimeters (inch) unless otherwise statedACTUALSIZEACTUALSIZED7 DZUS® Arrow Quarter-Turn FastenersAssembly• Surface install• Panel mounted assemblyMaterial and FinishAcetal, blackPerformance DetailsFlammability rating: UL94-HBASTM E-162 Flame spread Index: 130www.southco.com/D7A200 Series (order stud and receptacle separately)Locked 15.9 (.625) ReleasedGrip P 4.8(.188)GStudReceptacle AReceptaclePanelFrame9.14±0.10 (.36±.005)9.50±0.10 (.375±.005)FramePanel1/8” HexL2.2 (.085) 2.2 (.085)L LHex Recess Slotted KnobSeries AReceptacle StudP Panel Thickness Part Number G Grip Range Part NumberMin. Max. Min. Max. Hex recess Slotted recess Knob20012.3 (.48)0.50 (.020)1.78 (.070) D7-200-802-010 2.03 (.080)5.08 (.200) D7-200-701-010 D7-200-711-010 D7-200-721-01013.7 (.54)1.80 (.071)3.10 (.125) D7-201-802-010 3.43 (.135)6.35 (.250) D7-201-701-010 D7-201-711-010 D7-201-721-0102001 12.0 (.47)Complete Assembly0.05 (.020)1.7 (.067) ~ 2.5 (.098)6.7 (.263) D7-2001-0102001 SeriesLatched UnlatchedPart NumberSee table200 Series: Order one receptacle and stud from the same size separately2001 Series: Complete assembly supplied with runner attached as shown12.0 (XXX)2.8 (XXX) 13.4 (XXX)5.3 (XXX)16.9(XXX)13.4 (XXX)9.2(XXX)Snap-off featureGrip PG4.9 (.19)2.2 (.085)13.4 (.53)AInstallationD7 ArrowInstallation notes200 series:1. Press receptacle into outer panel.2. Press stud into receptacle.3. Press and turn stud to latch4. Turn stud 90 degree to unlatch.2001 series:1. Separate Stud and receptacle from runner.2. Press receptacle into outer panel.3. Press stud into receptacle.4. Press and turn stud to latch5. Turn stud 90 degree to unlatch8285D8D9D1D4D5D7NY
