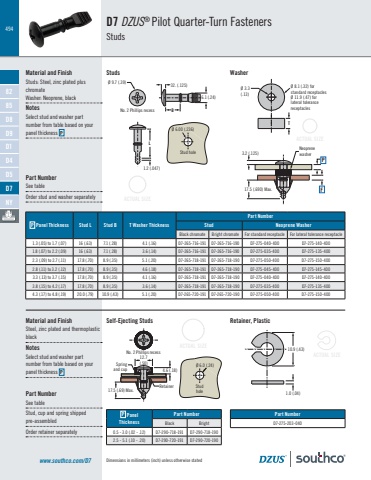

494Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZEACTUAL SIZEACTUAL SIZED7 DZUS® Pilot Quarter-Turn FastenersStudsMaterial and FinishStuds: Steel, zinc plated plus chromateWasher: Neoprene, blackNotesSelect stud and washer part number from table based on your panel thickness PMaterial and FinishSteel, zinc plated and thermoplastic blackNotesSelect stud and washer part number from table based on your panel thickness PNeoprenewasher 3.2 (.125)17.5 (.690) Max. FPØ 9.7 (.39)No. 2 Phillips recess BL6.1 (.24)32. (.125)Ø 6.00 (.236)Stud hole1.2 (.047)Studs WasherØ 8.1 (.32) for standard receptaclesØ 11.9 (.47) for lateral tolerance receptaclesØ 3.3 (.13)TP Panel Thickness Stud L Stud B T Washer ThicknessPart NumberStud Neoprene WasherBlack chromate Bright chromate For standard receptacle For lateral tolerance receptacle1.3 (.05) to 1.7 (.07) 16 (.63) 7.1 (.28) 4.1 (.16) D7-265-716-191 D7-265-716-190 D7-275-040-400 D7-275-140-4001.8 (.07) to 2.2 (.09) 16 (.63) 7.1 (.28) 3.6 (.14) D7-265-716-191 D7-265-716-190 D7-275-035-400 D7-275-135-4002.3 (.09) to 2.7 (.11) 17.8 (.70) 8.9 (.35) 5.1 (.20) D7-265-718-191 D7-265-718-190 D7-275-050-400 D7-275-150-4002.8 (.11) to 3.2 (.12) 17.8 (.70) 8.9 (.35) 4.6 (.18) D7-265-718-191 D7-265-718-190 D7-275-045-400 D7-275-145-4003.3 (.13) to 3.7 (.15) 17.8 (.70) 8.9 (.35) 4.1 (.16) D7-265-718-191 D7-265-718-190 D7-275-040-400 D7-275-140-4003.8 (.15) to 4.2 (.17) 17.8 (.70) 8.9 (.35) 3.6 (.14) D7-265-718-191 D7-265-718-190 D7-275-035-400 D7-275-135-4004.3 (.17) to 4.8 (.19) 20.0 (.79) 10.9 (.43) 5.1 (.20) D7-265-720-191 D7-265-720-190 D7-275-050-400 D7-275-150-400Self-Ejecting Studs No. 2 Phillips recess17.5 (.69) Max.12.7(.50)4.6 (.18)RetainerSpringand cupØ 6.0 (.24)StudholeRetainer, Plastic10.9 (.43)1.0 (.04)P PanelThicknessPart NumberBlack Bright0.5 - 3.0 (.02 - .12) D7-290-718-191 D7-290-718-1902.5 - 5.1 (.10 - .20) D7-290-720-191 D7-290-720-190Part NumberD7-275-203-040www.southco.com/D7Part NumberSee table Stud, cup and spring shipped pre-assembledOrder retainer separatelyPart NumberSee tableOrder stud and washer separately8285D8D9D1D4D5D7NY
