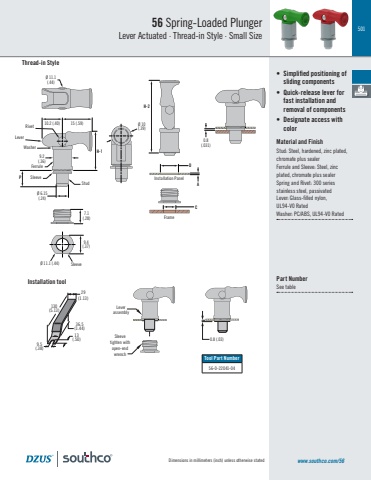

501Dimensions in millimeters (inch) unless otherwise statedH-2H-1Ø 10(.39)0.8(.031)DACØ 11.1(.44)PØ 6.15(.24)9.2(.36)10.2 (.40) 15 (.59)9.4(.37)Ø 11.1 (.44)7.1(.28)• Simplified positioning of sliding components• Quick-release lever for fast installation and removal of components• Designate access with colorMaterial and FinishStud: Steel, hardened, zinc plated, chromate plus sealerFerrule and Sleeve: Steel, zinc plated, chromate plus sealerSpring and Rivet: 300 series stainless steel, passivatedLever: Glass-filled nylon,UL94-V0 RatedWasher: PC/ABS, UL94-V0 RatedPart NumberSee tablewww.southco.com/56Tool Part Number56-0-22041-04Thread-in Style56 Spring-Loaded PlungerLever Actuated · Thread-in Style · Small SizeSleeveSleeveFerruleWasherLeverRivetStudLever assemblyInstallation PanelFrame0.8 (.03)36.5(1.44)13(.50)130(5.13)9.5(.38)29(1.13)Installation toolSleevetighten withopen-endwrench
