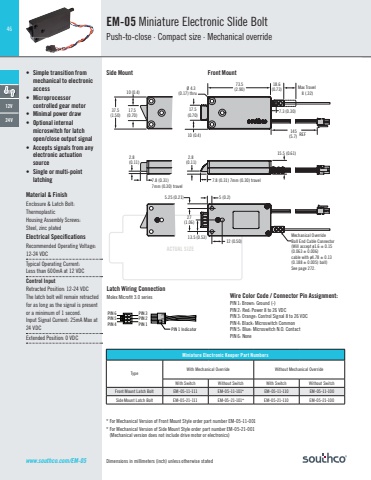

46Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEØ 4.3 (0.17) thru17.5(0.70)17.5(0.70)37.5(1.50)15.5 (0.61) 2.8 (0.11)2.8 (0.11)27(1.06)7.8 (0.31) 7.8 (0.31) 7mm (0.30) travel 7mm (0.30) travel 10 (0.4)10 (0.4)5.25 (0.21) 5 (0.2)13.5 (0.53) 12 (0.50)Mechanical Override Ball End Cable Connector(Will accept ø1.6 ± 0.15 (0.063 ± 0.006) cable with ø4.78 ± 0.13 (0.188 ± 0.005) ball)See page 272.73.5(2.90)145 (5.7) Max Travel 8 (.32)18.6(0.73)7.3 (0.30)REFWire Color Code / Connector Pin Assignment:PIN 1: Brown: Ground (-)PIN 2: Red: Power 8 to 26 VDCPIN 3: Orange: Control Signal 8 to 26 VDCPIN 4: Black: Microswitch CommonPIN 5: Blue: Microswitch N.O. ContactPIN 6: None11 2 3PIN 3PIN 2PIN 1PIN 1 IndicatorPIN 6PIN 5PIN 4• Simple transition from mechanical to electronic access• Microprocessor controlled gear motor• Minimal power draw• Optional internal microswitch for latch open/close output signal• Accepts signals from any electronic actuation source• Single or multi-point latchingMaterial & FinishEnclosure & Latch Bolt: ThermoplasticHousing Assembly Screws: Steel, zinc platedElectrical Specifi cationsRecommended Operating Voltage:12-24 VDCTypical Operating Current: Less than 600mA at 12 VDCControl InputRetracted Position: 12-24 VDCThe latch bolt will remain retracted for as long as the signal is present or a minimum of 1 second.Input Signal Current: 25mA Max at 24 VDCExtended Position: 0 VDC* For Mechanical Version of Front Mount Style order part number EM-05-11-001* For Mechanical Version of Side Mount Style order part number EM-05-21-001(Mechanical version does not include drive motor or electronics)EM-05 Miniature Electronic Slide Bolt Push-to-close · Compact size · Mechanical overrideMiniature Electronic Keeper Part NumbersTypeWith Mechanical Override Without Mechanical OverrideWith Switch Without Switch With Switch Without SwitchFront Mount Latch Bolt EM-05-11-111 EM-05-11-101* EM-05-11-110 EM-05-11-100Side Mount Latch Bolt EM-05-21-111 EM-05-21-101* EM-05-21-110 EM-05-21-100Latch Wiring ConnectionMolex Microfi t 3.0 seriesSide Mount Front Mount12V24Vwww.southco.com/EM-05Overgeared (Team Argo)
