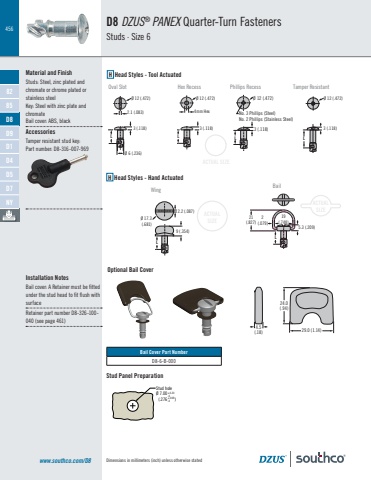

456Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUALSIZE ACTUALSIZED8 DZUS® PANEX Quarter-Turn FastenersStuds · Size 6Material and Finish Studs: Steel, zinc plated and chromate or chrome plated or stainless steelKey: Steel with zinc plate and chromateBail cover: ABS, blackAccessoriesTamper resistant stud key:Part number: D8-316-007-969Installation NotesBail cover: A Retainer must be fitted under the stud head to fit flush with surfaceRetainer part number D8-326-100-040 (see page 461)Ø 12 (.472)3 (.118)L2.1 (.083)Ø 12 (.472)Ø 6 (.236)3 (.118)LL9 (.354)Ø 17.3 (.681)2.2 (.087)L21(.827)19(.748)2 (.079)5.3 (.209)3 (.118)Ø 12 (.472)No. 3 Phillips (Steel)No. 2 Phillips (Stainless Steel) L4mm HexØ 12 (.472)3 (.118)LH Head Styles - Tool ActuatedOval Slot Hex Recess Phillips RecessH Head Styles - Hand ActuatedBail WingTamper Resistantwww.southco.com/D8Stud Panel PreparationOptional Bail Cover4.5(.18)24.0(.94)29.0 (1.14)Bail Cover Part NumberD8-6-B-000Stud holeØ 7.00 (.276 )+0.20-0+.008-08285D8D9D1D4D5D7NY
