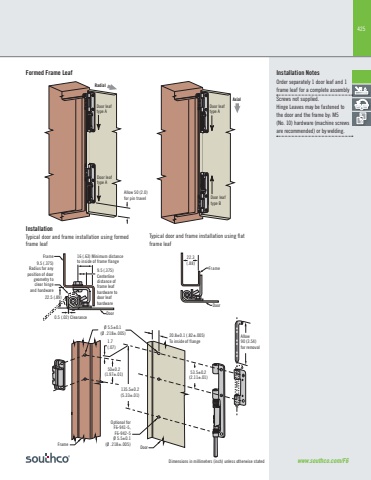

425Dimensions in millimeters (inch) unless otherwise stated www.southco.com/F6Installation Typical door and frame installation using formed frame leafTypical door and frame installation using flat frame leafAllow 50 (2.0) for pin travelDoor leaftype ADoor leaftype ADoor leaftype ADoor leaftype BAxialRadial16 (.63) Minimum distanceto inside of frame flange9.5 (.375) Centerlinedistance of frame leaf hardware todoor leafhardwareDoorFrame22.5 (.89)9.5 (.375)Radius for anyposition of doorgeometry toclear hingeand hardware0.5 (.02) ClearanceFrame Door20.8±0.1 (.82±.005)To inside of flange135.5±0.2(5.33±.01)50±0.2(1.97±.01)Ø 5.5±0.1 (Ø .218±.005)53.5±0.2(2.11±.01)1.7(.07)Allow90 (3.54) for removalOptional forF6-941-5,F6-942-5Ø 5.5±0.1(Ø .218±.005)DoorFrame22.3(.88)Formed Frame Leaf Installation NotesOrder separately 1 door leaf and 1 frame leaf for a complete assembly Screws not supplied.Hinge Leaves may be fastened to the door and the frame by: M5 (No. 10) hardware (machine screws are recommended) or by welding.
