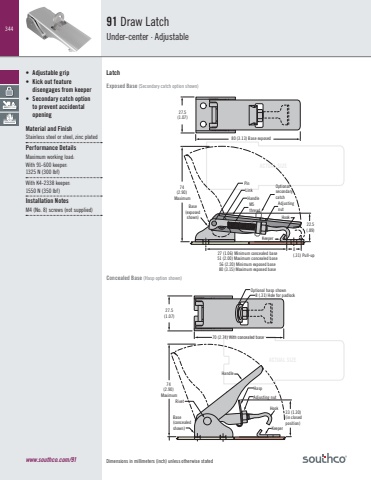

344ACTUAL SIZEACTUAL SIZEDimensions in millimeters (inch) unless otherwise stated• Adjustable grip • Kick out feature disengages from keeper• Secondary catch option to prevent accidental openingMaterial and FinishStainless steel or steel, zinc platedPerformance Details Maximum working load:With 91-600 keeper: 1325 N (300 lbf)With K4-2338 keeper: 1550 N (350 lbf)Installation NotesM4 (No. 8) screws (not supplied)91 Draw LatchUnder-center · Adjustable74 (2.90) Maximum27 (1.06) Minimum concealed base51 (2.00) Maximum concealed base56 (2.20) Minimum exposed base80 (3.15) Maximum exposed base8 (.31) Pull-upBase(exposedshown)LinkHandleOptional secondary catch M5threadAdjusting nutPinHookKeeper80 (3.13) Base exposed27.5(1.07)22.5(.89)74 (2.90) Maximum33 (1.30)(in closedposition)27.5(1.07)HaspBase(concealedshown)RivetHandleKeeper70 (2.74) With concealed base Adjusting nut8 (.31) Hole for padlockHookOptional hasp shownLatchExposed Base (Secondary catch option shown)Concealed Base (Hasp option shown)www.southco.com/91
