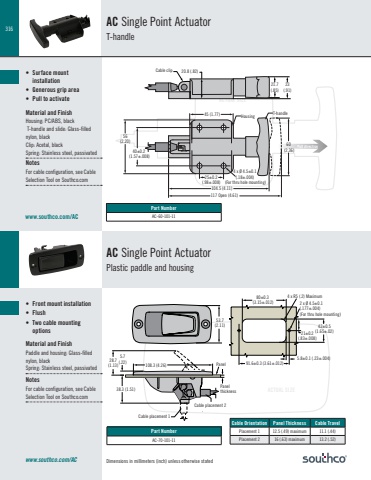

316Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZEPull direction45 (1.77) Housing T-handle60 (2.36)104.5 (4.11)117 Open (4.61)25±0.2(.98±.008)40±0.2 (1.57±.008)4 x Ø 4.5±0.1 (.18±.004) (For thru hole mounting)56(2.20)Cable clip 20.8 (.82)21.7(.85)23(.91)108.3 (4.26) PanelPanel thicknessCable placement 15.7(.22)38.3 (1.51)53.7(2.11)28.7(1.13)80±0.3 (3.15±.012) 2 x Ø 4.5±0.1 (.177±.004)(For thru hole mounting)91.6±0.3 (3.61±.012)5.8±0.1 (.23±.004)42±0.5(1.65±.02) 21±0.2(.83±.008)4 x R5 (.2) MaximumCable placement 2Part NumberAC-60-101-11Part NumberAC-70-101-11Cable Orientation Panel Thickness Cable TravelPlacement 1 12.5 (.49) maximum 11.1 (.44) Placement 2 16 (.63) maximum 13.2 (.52)• Surface mount installation• Generous grip area• Pull to activateMaterial and FinishHousing: PC/ABS, black T-handle and slide: Glass-filled nylon, blackClip: Acetal, blackSpring: Stainless steel, passivatedNotesFor cable configuration, see Cable Selection Tool on Southco.comAC Single Point ActuatorT-handleAC Single Point ActuatorPlastic paddle and housingwww.southco.com/AC• Front mount installation• Flush• Two cable mounting optionsMaterial and FinishPaddle and housing: Glass-filled nylon, blackSpring: Stainless steel, passivatedNotesFor cable configuration, see Cable Selection Tool on Southco.comwww.southco.com/AC
