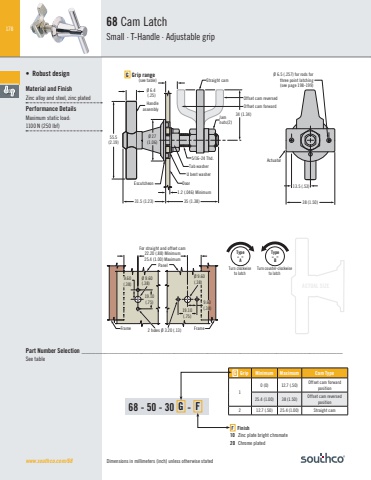

178Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZE68 Cam Latch Small · T-Handle · Adjustable grip• Robust designMaterial and FinishZinc alloy and steel, zinc plated Performance DetailsMaximum static load:1100 N (250 lbf) 13.5 (.53)38 (1.50)34 (1.34)Ø 6.4 (.25)Ø 27(1.06)55.5(2.19)1.2 (.046) Minimum31.5 (1.23) 35 (1.38)HandleassemblyStraight camJam nuts(2)Tab washerU bent washerEscutcheon DoorActuatorGrip range(see table)5/16-24 Thd.Ø 6.5 (.257) for rods forthree point latching(see page 198-199)Offset cam forwardOffset cam reversedG19.10(.75)9.60(.38)Ø 9.60 (.38)PanelFrameFor straight and offset cam22.20 (.88) Minimum25.4 (1.00) MaximumFrame 2 holes Ø 3.20 (.13)Ø 9.60(.38)19.10(.75)9.60(.38)F Finish10 Zinc plate bright chromate20 Chrome plated68 - 50 - 30 G - FG Grip Minimum Maximum Cam Type10 (0) 12.7 (.50) Offset cam forward position25.4 (1.00) 38 (1.50) Offset cam reversed position2 12.7 (.50) 25.4 (1.00) Straight camPart Number Selection _______________________________________________________________________________See tablewww.southco.com/68Type“A”Type“B”Turn clockwiseto latchTurn counter-clockwiseto latch
