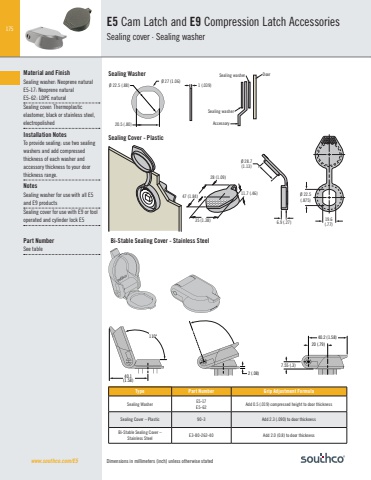

175Dimensions in millimeters (inch) unless otherwise statedMaterial and FinishSealing washer: Neoprene naturalE5-17: Neoprene naturalE5-62: LDPE naturalSealing cover: Thermoplastic elastomer, black or stainless steel, electropolishedInstallation Notes To provide sealing: use two sealing washers and add compressed thickness of each washer and accessory thickness to your door thickness range.NotesSealing washer for use with all E5 and E9 productsSealing cover for use with E9 or tool operated and cylinder lock E5Part NumberSee tablewww.southco.com/E547 (1.84)28 (1.09)11.7 (.46)35 (1.38)Sealing Cover - PlasticØ 28.7(1.13)6.9 (.27)19.6(.77)Ø 22.5(.875)Ø 19 (.75)0.8 (.031) 13.5 (.53)Ø 16 (.63) Ø 22.6 (.89)Ø 27 (1.06) Ø 22.5 (.88) 1 (.039) 20.5 (.80) Sealing Washer DoorSealing washer Accessory Sealing washer Bi-Stable Sealing Cover - Stainless Steel40.2 (1.58)20 (.79)7.55 (.3)2 (.08) 40.1(1.58)110ºType Part Number Grip Adjustment FormulaSealing Washer E5-17E5-62 Add 0.5 (.019) compressed height to door thicknessSealing Cover – Plastic 90-3 Add 2.3 (.090) to door thicknessBi-Stable Sealing Cover –Stainless Steel E3-80-262-40 Add 2.0 (0.8) to door thicknessE5 Cam Latch and E9 Compression Latch AccessoriesSealing cover · Sealing washer40.2 (1.58)20 (.79)7.55 (.3)2 (.08) 40.1(1.58)110º
