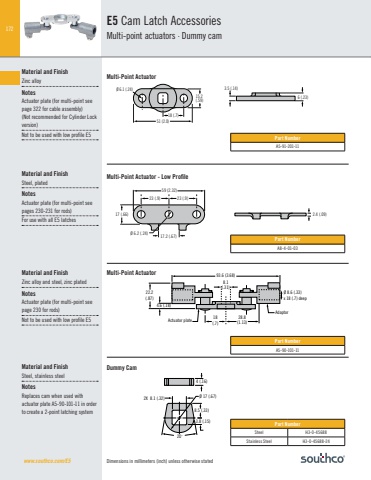

172www.southco.com/E5 Dimensions in millimeters (inch) unless otherwise statedØ 6.1 (.24) 6 (.23)51 (2.0)18 (.7)15.2 (.59)3.5 (.14)59 (2.32)23 (.9)17 (.66)17.2 (.67) Ø 6.2 (.24) 23 (.9)2.4 (.09) E5 Cam Latch AccessoriesMulti-point actuators · Dummy camMaterial and FinishZinc alloyNotesActuator plate (for multi-point see page 322 for cable assembly)(Not recommended for Cylinder Lock version) Not to be used with low profile E5Material and FinishSteel, platedNotesActuator plate (for multi-point see pages 230-231 for rods) For use with all E5 latchesMaterial and FinishSteel, stainless steelNotesReplaces cam when used with actuator plate A5-90-101-11 in order to create a 2-point latching system93.6 (3.68)22.2 (.87)4.6 (.18)8.1(.31)Actuator plateAdaptorØ 8.6 (.33) x 18 (.7) deep18(.7)28.8(1.13)Multi-Point ActuatorMulti-Point Actuator - Low ProfileMulti-Point ActuatorDummy CamMaterial and FinishZinc alloy and steel, zinc platedNotesActuator plate (for multi-point see page 230 for rods) Not to be used with low profile E5Part NumberA5-91-201-11Part NumberA8-4-01-03Part NumberA5-90-101-11Part NumberSteel H3-0-45688Stainless Steel H3-0-45688-2420°3.8 (.15)8.5 (.33)2X 8.1 (.32) Ø 17 (.67)4 (.16)
