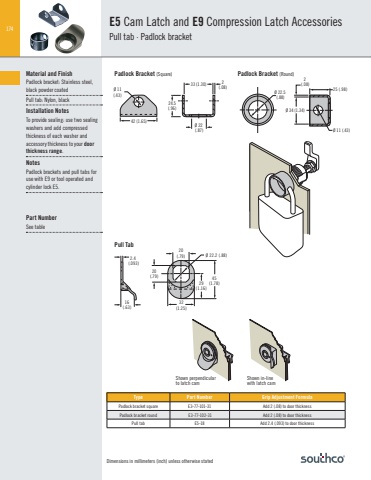

174Dimensions in millimeters (inch) unless otherwise statedPart NumberSee tableMaterial and FinishPadlock bracket: Stainless steel, black powder coated Pull tab: Nylon, black Installation Notes To provide sealing: use two sealing washers and add compressed thickness of each washer and accessory thickness to your door thickness range.Notes Padlock brackets and pull tabs for use with E9 or tool operated and cylinder lock E5.Ø 22.2 (.88)20(.79)45(1.78)32(1.25)20(.79)29(1.16)2.4 (.093)16(.63)Shown perpendicular to latch camShown in-linewith latch camPadlock Bracket (Square)Pull Tab Ø 22 (.87) Ø 11(.43) 42 (1.65) 33 (1.30) 2 (.08)24.5(.96)Ø 22.5 (.88)Ø 11 (.43)2 (.08)Ø 34 (1.34)25 (.98)Padlock Bracket (Round)Type Part Number Grip Adjustment FormulaPadlock bracket square E3-77-101-31 Add 2 (.08) to door thicknessPadlock bracket round E3-77-102-31 Add 2 (.08) to door thicknessPull tab E5-18 Add 2.4 (.093) to door thicknessE5 Cam Latch and E9 Compression Latch AccessoriesPull tab · Padlock bracket
