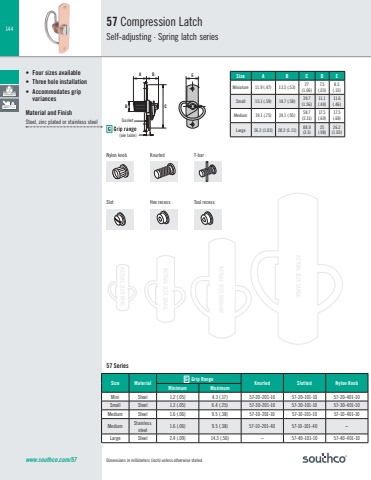

144ACTUAL SIZE LARGEACTUAL SIZE MINIACTUAL SIZE SMALLACTUAL SIZE MEDIUMA DB CE(see table)Gasket Dimensions in millimeters (inch) unless otherwise statedSize A B C D EMiniature 11.9 (.47) 13.5 (.53) 27 (1.06)7.5 (.03)8.5 (.33)Small 15.1 (.59) 14.7 (.58) 39.7 (1.56)11.1 (.44)11.6 (.46)Medium 19.1 (.75) 24.1 (.95) 58.7 (2.31)17.5 (.69)17.5 (.69)Large 26.2 (1.03) 28.2 (1.11) 88.9 (3.5)25 (.98)26.2 (1.03)Nylon knob Knurled T-barSlot Hex recess Tool recess57 Compression LatchSelf-adjusting · Spring latch serieswww.southco.com/57• Four sizes available• Three hole installation• Accommodates grip variancesMaterial and FinishSteel, zinc plated or stainless steelSize Material G Grip Range Knurled Slotted Nylon KnobMinimum MaximumMini Steel 1.2 (.05) 4.3 (.17) 57-20-201-10 57-20-101-10 57-20-401-10Small Steel 1.2 (.05) 6.4 (.25) 57-30-201-10 57-30-101-10 57-30-401-10Medium Steel 1.6 (.06) 9.5 (.38) 57-10-201-10 57-10-101-10 57-10-401-10Medium Stainless steel 1.6 (.06) 9.5 (.38) 57-10-201-40 57-10-101-40 ~Large Steel 2.4 (.09) 14.3 (.56) ~ 57-40-101-10 57-40-401-1057 Series
