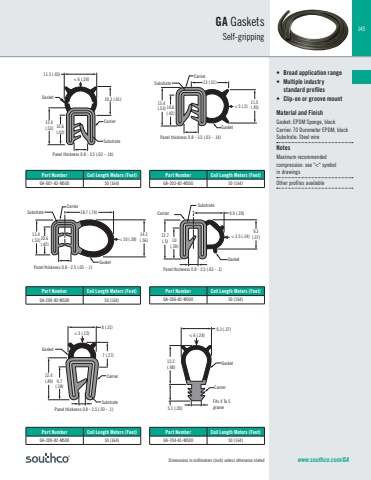

145Dimensions in millimeters (inch) unless otherwise stated www.southco.com/GA11.5 (.45) 13.4(.53) 10.6(.42) 10.3 (.41)CarrierPanel thickness 0.8 - 3.5 (.03 - .14) SubstrateGasket< 6 (.24) 11.5(.45) 13.4(.53) 10.6(.42)13 (.51)CarrierSubstrateGasket< 5 (.2)Panel thickness 0.8 - 3.5 (.03 - .14) 18.7 (.74)13.4(.53)10.6(.42) 14.3(.56)CarrierSubstrateGasket< 10 (.39)Panel thickness 0.8 - 2.5 (.03 - .1) Part Number Coil Length Meters (Feet)GA-007-82-M500 50 (164)Part Number Coil Length Meters (Feet)GA-202-82-M500 50 (164)Part Number Coil Length Meters (Feet)GA-204-82-M500 50 (164)Part Number Coil Length Meters (Feet)GA-206-82-M500 50 (164)9.9 (.39) 12.7(.5) 10(.39)9.3(.37)CarrierSubstrateGasketPanel thickness 0.8 - 2.5 (.03 - .1) < 3.5 (.14)Part Number Coil Length Meters (Feet)GA-209-82-M500 50 (164)Part Number Coil Length Meters (Feet)GA-704-81-M500 50 (164)8 (.31) 12.4(.49) 9.7(.38)7 (.27)CarrierSubstrateGasket< 3 (.12)Panel thickness 0.8 - 2.5 (.03 - .1) 9.3 (.37)5.1 (.20)12.2(.48)CarrierGasket< 6 (.24)Fits 4 To 5grooveGA GasketsSelf-gripping• Broad application range• Multiple industry standard profiles• Clip-on or groove mountMaterial and FinishGasket: EPDM Sponge, blackCarrier: 70 Durometer EPDM, blackSubstrate: Steel wireNotesMaximum recommendedcompression: see \in drawingsOther profiles available
