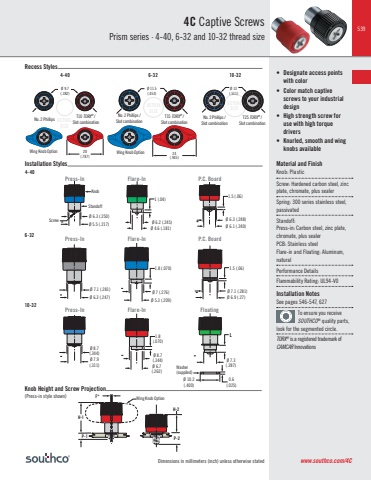

539Dimensions in millimeters (inch) unless otherwise stated www.southco.com/4C• Designate access pointswith color• Color match captivescrews to your industrialdesign• High strength screw foruse with high torquedrivers• Knurled, smooth and wingknobs availableMaterial and FinishKnob: PlasticScre Hardened carbon steel, zinc plate, chromate, plus sealerSpring: 300 series stainless steel, passivated Standoff: Press-in: Carbon steel, zinc plate, chromate, plus sealerPCB: Stainless steelFlare-in and Floating: Aluminum, natural Performance DetailsFlammability Rating: UL94-V0Installation NotesSee pages 546-547, 627To ensure you receive SOUTHCO® quality parts, look for the segmented circle.TORX® is a registered trademark of CAMCAR InnovationsRecess Styles4-40Ø 9.7(.382)20(.787)10-32No. 2 Phillips / Slot combinationT25 TORX® /Slot combinationØ 13(.511)Ø 11.5(.453)24(.945)6-32ACTUALSIZEInstallation StylesKnob Height and Screw Projection(Press-in style shown)Ø 7.9(.311)Ø 8.7(.344)Ø 6.7(.262)Ø 8.7(.344)1.8(.070)Ø 7.3(.287)L0.6(.025)Ø 10.2(.400)Press-In Flare-In Floating10-326-32Press-In Flare-In P.C. BoardØ 6.3 (.247)Ø 7.1 (.281)Ø 5.3 (.209)1.8 (.070)Ø 7 (.276)P.C. BoardØ 6.9 (.27)1.5 (.06)Ø 7.1 (.281)4C Captive ScrewsPrism series · 4-40, 6-32 and 10-32 thread size4-40Ø 5.5 (.217)Ø 6.3 (.250)Ø 4.6 (.181)1 (.04)Ø 6.2 (.245) Ø 6.1 (.240)1.5 (.06)Ø 6.3 (.248)Press-In Flare-In P.C. BoardP-1F*H-1H-2P-2Wing Knob OptionNo. 2 PhillipsWing Knob Option Wing Knob OptionT10 TORX® /Slot combinationNo. 2 Phillips /Slot combination No. 2 Phillips /Slot combinationT15 TORX® /Slot combinationT25 TORX® /Slot combinationACTUALSIZEACTUALSIZEKnobScrewStandoffWasher(supplied)
