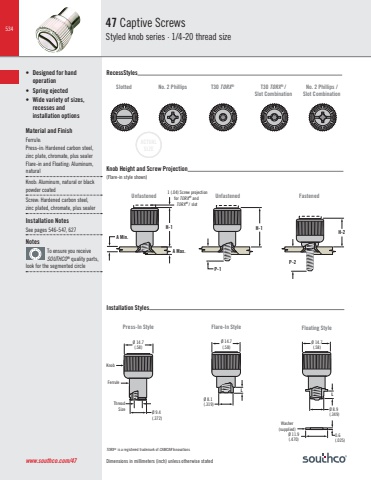

534Dimensions in millimeters (inch) unless otherwise statedPress-In Style Flare-In Style Floating StyleØ 14.7(.58)ThreadSize Ø 9.4 (.372)FerruleKnobØ 14.7(.58)LØ 8.1(.319)L0.6 (.025)Ø 8.9 (.349)Washer(supplied)Ø 11.9(.470)Ø 14.7(.58)www.southco.com/4747 Captive ScrewsStyled knob series · 1/4-20 thread size• Designed for hand operation• Spring ejected• Wide variety of sizes, recesses and installation optionsMaterial and FinishFerrule: Press-in: Hardened carbon steel, zinc plate, chromate, plus sealerFlare-in and Floating: Aluminum, naturalKnob: Aluminum, natural or black powder coatedScre Hardened carbon steel, zinc plated, chromate, plus sealerInstallation NotesSee pages 546-547, 627NotesTo ensure you receive SOUTHCO® quality parts, look for the segmented circleH-2P-2P-1H-1 H-1A Min.A Max.Unfastened Unfastened Fastened 1 (.04) Screw projectionfor TORX® and TORX® / slotACTUALSIZERecess StylesKnob Height and Screw Projection(Flare-in style shown)Installation StylesSlotted No. 2 Phillips T30 TORX® T30 TORX® /Slot CombinationNo. 2 Phillips /Slot CombinationTORX® is a registered trademark of CAMCAR Innovations
