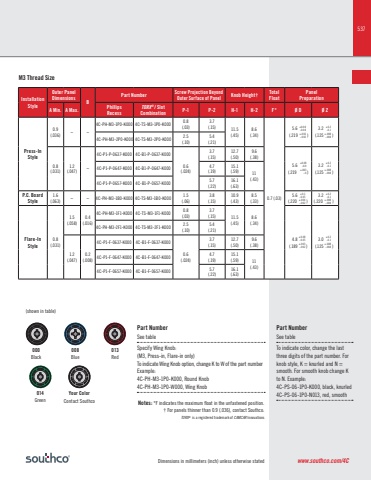

537Dimensions in millimeters (inch) unless otherwise stated(shown in table)000Black 008Blue013Red014GreenYour ColorContact SouthcoPart Number See tableTo indicate color, change the last three digits of the part number. For knob style, K = knurled and N = smooth. For smooth knob change K to N. Example:4C-PS-06-1P0-K000, black, knurled 4C-PS-06-1P0-N013, red, smoothPart Number See tableSpecify Wing Knob: (M3, Press-in, Flare-in only)To indicate Wing Knob option, change K to W of the part numberExample:4C-PH-M3-1P0-K000, Round Knob4C-PH-M3-1P0-W000, Wing Knobwww.southco.com/4CNotes: *F indicates the maximum float in the unfastened position. † For panels thinner than 0.9 (.036), contact Southco.TORX® is a registered trademark of CAMCAR InnovationsM3 Thread SizeInstallationStyleOuter Panel DimensionsBPart Number Screw Projection Beyond Outer Surface of Panel Knob Height† TotalFloatPanel PreparationA Min. A Max. PhillipsRecessTORX® / SlotCombination P-1 P-2 H-1 H-2 F* Ø D Ø ZPress-InStyle0.9 (.036) ~ ~4C-PH-M3-1P0-K000 4C-TS-M3-1P0-K000 0.8(.03)3.7(.15) 11.5(.45)8.6(.34)0.7 (.03) 5.6 (.219 ) 3.2 (.125 ) 4C-PH-M3-2P0-K000 4C-TS-M3-2P0-K000 2.5(.10)5.4(.21)0.8 (.031)1.2(.047) ~4C-P1-P-0637-K000 4C-B1-P-0637-K0000.6(.024)3.7(.15)12.7(.50)9.6(.38) 5.6 (.219 ) 3.2 (.125 ) 4C-P1-P-0647-K000 4C-B1-P-0647-K000 4.7(.19)15.1(.59) 11(.43)4C-P1-P-0657-K000 4C-B1-P-0657-K000 5.7(.22)16.1(.63)P.C. BoardStyle1.6 (.063) ~ ~ 4C-PH-M3-1B0-K000 4C-TS-M3-1B0-K000 1.5(.06)3.8(.15)10.9(.43)8.5(.33) 5.6 (.220 ) 3.2 (.220 )Flare-InStyle0.8 (.031)1.5 (.058)0.4 (.016)4C-PH-M3-1F1-K000 4C-TS-M3-1F1-K000 0.8(.03)3.7(.15) 11.5(.45)8.6(.34) 4.8 (.189 ) 3.0 (.125 )4C-PH-M3-2F1-K000 4C-TS-M3-2F1-K000 2.5(.10)5.4(.21)1.2 (.047)0.2 (.008)4C-P1-F-0637-K000 4C-B1-F-0637-K0000.6(.024)3.7(.15)12.7(.50)9.6(.38)4C-P1-F-0647-K000 4C-B1-F-0647-K000 4.7(.19)15.1(.59) 11(.43)4C-P1-F-0657-K000 4C-B1-F-0657-K000 5.7(.22)16.1(.63)+.002-.002+.003-.0+.004-.002+.003-.002+0.2-0.1+0.2-0.1+0.2-0.1+0.2-0.1+0.08-0.05+.008-.004+.008-.004+.008-.004+.008-.004+0.04-0.04+0.08-0.0+0.1-0.05
