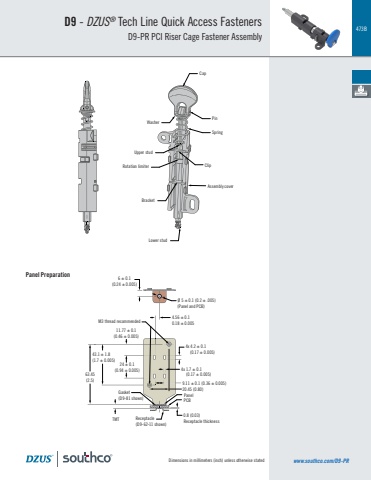

473BDimensions in millimeters (inch) unless otherwise stated6 ± 0.1(0.24 ± 0.005)4.56 ± 0.10.18 ± 0.0054x 4.2 ± 0.1(0.17 ± 0.005) 43.1 ± 1.8(1.7 ± 0.005)24 ± 0.1(0.94 ± 0.005)11.77 ± 0.1(0.46 ± 0.005)63.45(2.5)4x 1.7 ± 0.1(0.17 ± 0.005)9.11 ± 0.1 (0.36 ± 0.005)20.45 (0.80)0.8 (0.03)Ø 5 ± 0.1 (0.2 ± .005)www.southco.com/D9-PRPanel PreparationD9 - DZUS® Tech Line Quick Access FastenersD9-PR PCI Riser Cage Fastener AssemblyCapPinSpringClipAssembly coverLower studBracketRotation limiterUpper studWasherM3 thread recommendedPanel Gasket(D9-81 shown)Receptacle(D9-62-11 shown) Receptacle thicknessPCBTMT(Panel and PCB)
