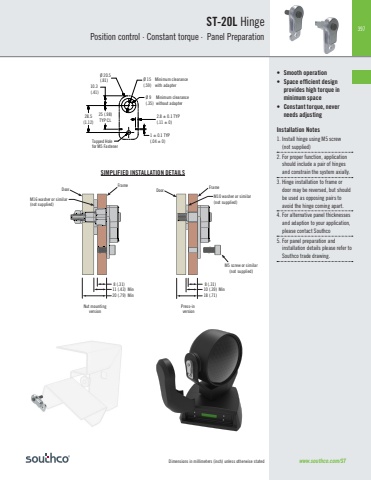

397Dimensions in millimeters (inch) unless otherwise stated www.southco.com/ST2.8 ± 0.1 TYP (.11 ± 0)Ø 9 (.35)Ø 15 (.59)Ø 20.5 (.81)10.3(.41)28.5(1.12)25 (.98)TYP CL1 ± 0.1 TYP (.04 ± 0)SIMPLIFIED INSTALLATION DETAILS28.5(1.12)20 (.79)8 (.31)11 (.43)20 (.79)8 (.31)10 (.39)18 (.71)Ø 5.3(.20)ST-20L HingePosition control · Constant torque · Panel Preparation• Smooth operation• Space efficient design provides high torque in minimum space• Constant torque, never needs adjustingInstallation Notes1. Install hinge using M5 screw (not supplied)2. For proper function, application should include a pair of hinges and constrain the system axially. 3. Hinge installation to frame or door may be reversed, but should be used as opposing pairs to avoid the hinge coming apart. 4. For alternative panel thicknesses and adaption to your application, please contact Southco5. For panel preparation and installation details please refer to Southco trade drawing.Tapped Holefor M5 FastenerDoorNut mounting versionPress-in versionM5 screw or similar (not supplied)Min MinMinDoorFrame FrameM10 washer or similar (not supplied) M16 washer or similar (not supplied)Minimum clearancewithout adapterMinimum clearancewith adapter
