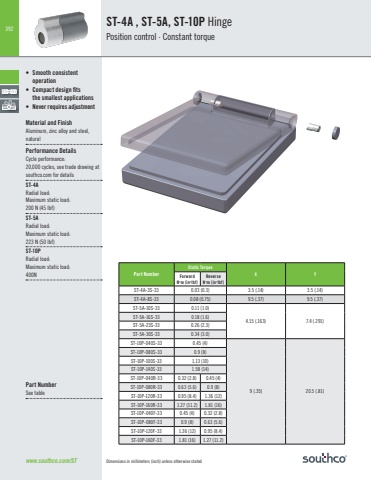

392www.southco.com/ST Dimensions in millimeters (inch) unless otherwise statedST-4A , ST-5A, ST-10P HingePosition control · Constant torque• Smooth consistent operation• Compact design fits the smallest applications• Never requires adjustmentMaterial and FinishAluminum, zinc alloy and steel, natural Performance DetailsCycle performance:20,000 cycles, see trade drawing at southco.com for detailsST-4ARadial load:Maximum static load: 200 N (45 lbf)ST-5ARadial load:Maximum static load: 223 N (50 lbf)ST-10PRadial load:Maximum static load: 400NPart NumberSee tablePart NumberStatic TorqueX Y Forward N•m (in•lbf)Reverse N•m (in•lbf)ST-4A-3S-33 0.03 (0.3) 3.5 (.14) 3.5 (.14)ST-4A-8S-33 0.08 (0.75) 9.5 (.37) 9.5 (.37)ST-5A-10S-33 0.11 (1.0)4.15 (.163) 7.4 (.291)ST-5A-16S-33 0.18 (1.6)ST-5A-23S-33 0.26 (2.3)ST-5A-30S-33 0.34 (3.0)ST-10P-040S-33 0.45 (4)9 (.35) 20.5 (.81)ST-10P-080S-33 0.9 (8)ST-10P-100S-33 1.13 (10)ST-10P-140S-33 1.58 (14)ST-10P-040R-33 0.32 (2.8) 0.45 (4)ST-10P-080R-33 0.63 (5.6) 0.9 (8)ST-10P-120R-33 0.95 (8.4) 1.36 (12)ST-10P-160R-33 1.27 (11.2) 1.81 (16)ST-10P-040F-33 0.45 (4) 0.32 (2.8)ST-10P-080F-33 0.9 (8) 0.63 (5.6)ST-10P-120F-33 1.36 (12) 0.95 (8.4)ST-10P-160F-33 1.81 (16) 1.27 (11.2)
