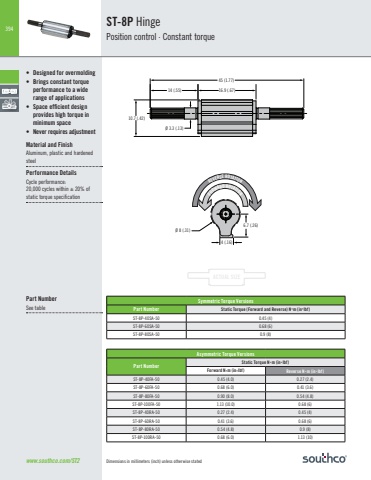

394Symmetric Torque VersionsPart Number Static Torque (Forward and Reverse) N•m (in•lbf)ST-8P-40SA-50 0.45 (4)ST-8P-60SA-50 0.68 (6)ST-8P-80SA-50 0.9 (8)Asymmetric Torque VersionsPart Number Static Torque Nm (inlbf)Forward N•m (in•lbf) Reverse Nm (inlbf)ST-8P-40FA-50 0.45 (4.0) 0.27 (2.4)ST-8P-60FA-50 0.68 (6.0) 0.41 (3.6)ST-8P-80FA-50 0.90 (8.0) 0.54 (4.8)ST-8P-100FA-50 1.13 (10.0) 0.68 (6)ST-8P-40RA-50 0.27 (2.4) 0.45 (4)ST-8P-60RA-50 0.41 (3.6) 0.68 (6)ST-8P-80RA-50 0.54 (4.8) 0.9 (8)ST-8P-100RA-50 0.68 (6.0) 1.13 (10)ACTUAL SIZEØ 8 (.31)4 (.16)6.7 (.26)10.7 (.42)14 (.55)45 (1.77)Ø 3.3 (.13)16.9 (.67)REVERSE ROTATIONFORWARD ROTATIONØ 8 (.31)4 (.16)6.7 (.26)10.7 (.42)14 (.55)45 (1.77)Ø 3.3 (.13)16.9 (.67)REVERSE ROTATIONFORWARD ROTATIONwww.southco.com/ST2 Dimensions in millimeters (inch) unless otherwise statedST-8P HingePosition control · Constant torque• Designed for overmolding• Brings constant torque performance to a wide range of applications• Space efficient design provides high torque in minimum space• Never requires adjustmentMaterial and FinishAluminum, plastic and hardened steel Performance DetailsCycle performance:20,000 cycles within ± 20% of static torque specificationPart NumberSee table
