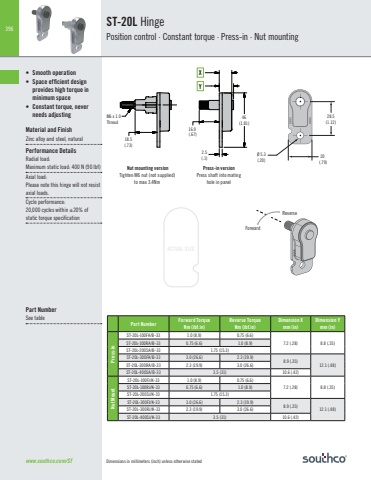

396Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEwww.southco.com/ST28.5 (1.12)25 (.98)Ø 5.2 (.2)20 (.79)46(1.81)2.5(.1)16.9 (.67)18.5(.73)28.5 (1.12)25 (.98)Ø 5.2 (.2)20 (.79)46(1.81)2.5(.1)16.9 (.67)18.5(.73)28.5(1.12)20 (.79)8 (.31)11 (.43)20 (.79)8 (.31)10 (.39)18 (.71)Ø 5.3(.20)• Smooth operation• Space efficient design provides high torque in minimum space• Constant torque, never needs adjustingMaterial and FinishZinc alloy and steel, naturalPerformance DetailsRadial load:Maximum static load: 400 N (90 lbf)Axial load:Please note this hinge will not resist axial loads.Cycle performance:20,000 cycles within ±20% of static torque specificationPart NumberSee tableST-20L HingePosition control · Constant torque · Press-in · Nut mounting Nut mounting versionTighten M6 nut (not supplied) to max 3.4NmPress-in versionPress shaft into mating hole in panelYXForwardReverseM6 x 1.0ThreadPart Number Forward TorqueNm (ibf.in)Reverse TorqueNm (ibf.in)Dimension Xmm (in)Dimension Ymm (in)Press-InST-20L-100FA/B-33 1.0 (8.9) 0.75 (6.6)ST-20L-100RA/B-33 0.75 (6.6) 1.0 (8.9) 7.2 (.28) 8.8 (.35)ST-20L-200SA/B-33 1.75 (15.3)ST-20L-300FA/B-33 3.0 (26.6) 2.3 (19.9) 8.9 (.35) ST-20L-300RA/B-33 2.3 (19.9) 3.0 (26.6) 12.1 (.48)ST-20L-400SA/B-33 3.5 (31) 10.6 (.42)Nut MountST-20L-100FJ/K-33 1.0 (8.9) 0.75 (6.6)ST-20L-100RJ/K-33 0.75 (6.6) 1.0 (8.9) 7.2 (.28) 8.8 (.35)ST-20L-200SJ/K-33 1.75 (15.3)ST-20L-300FJ/K-33 3.0 (26.6) 2.3 (19.9) 8.9 (.35) ST-20L-300RJ/K-33 2.3 (19.9) 3.0 (26.6) 12.1 (.48)ST-20L-400SJ/K-33 3.5 (31) 10.6 (.42)
