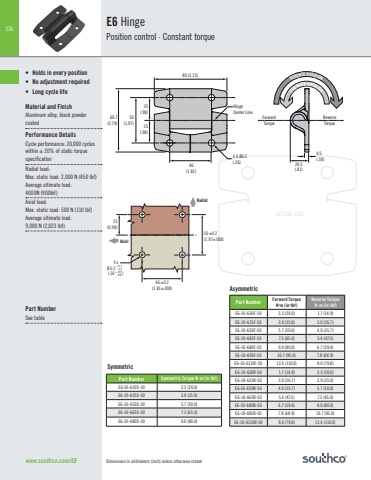

376ACTUAL SIZEwww.southco.com/E680 (3.15)4.5(.18)20.5(.81)25(.98)25(.98)50(1.97)46(1.81)4 X Ø6.5(.26)ForwardTorqueReverseTorque69.7(2.74)Hinge Center LineREVERSE ROTATIONFORWARD ROTATION4 xØ 6.5 (.26 )50 ±0.2(1.97±.008)25(0.98)46 ±0.2(1.81±.008)+ 0.1 - 0.0+ .005 - .000AxialRadialPart Number Symmetric Torque Nm (inlbf)E6-10-620S-50 2.3 (20.0)E6-10-635S-50 3.9 (35.0)E6-10-650S-50 5.7 (50.0)E6-10-665S-50 7.3 (65.0)E6-10-680S-50 9.0 (80.0)Part Number Forward TorqueN•m (in•lbf)Reverse Torque Nm (inlbf)E6-10-620F-50 2.3 (20.0) 1.7 (14.9)E6-10-635F-50 3.9 (35.0) 3.0 (26.7)E6-10-650F-50 5.7 (50.0) 4.0 (35.7)E6-10-665F-50 7.3 (65.0) 5.4 (47.5)E6-10-680F-50 9.0 (80.0) 6.7 (59.4)E6-10-695F-50 10.7 (95.0) 7.8 (68.9)E6-10-6110F-50 12.4 (110.0) 9.0 (79.8)E6-10-620R-50 1.7 (14.9) 2.3 (20.0)E6-10-635R-50 3.0 (26.7) 3.9 (35.0)E6-10-650R-50 4.0 (35.7) 5.7 (50.0)E6-10-665R-50 5.4 (47.5) 7.3 (65.0)E6-10-680R-50 6.7 (59.4) 9.0 (80.0)E6-10-695R-50 7.8 (68.9) 10.7 (95.0)E6-10-6110R-50 9.0 (79.8) 12.4 (110.0)SymmetricAsymmetricE6 HingePosition control · Constant torque• Holds in every position• No adjustment required• Long cycle lifeMaterial and FinishAluminum alloy, black powder coatedPerformance DetailsCycle performance: 20,000 cycles within ± 20% of static torque specificationRadial load: Max. static load: 2,000 N (450 lbf)Average ultimate load: 4000N (900lbf)Axial load: Max. static load: 500 N (110 lbf)Average ultimate load: 9,000 N (2,023 lbf)Part NumberSee tableDimensions in millimeters (inch) unless otherwise stated
