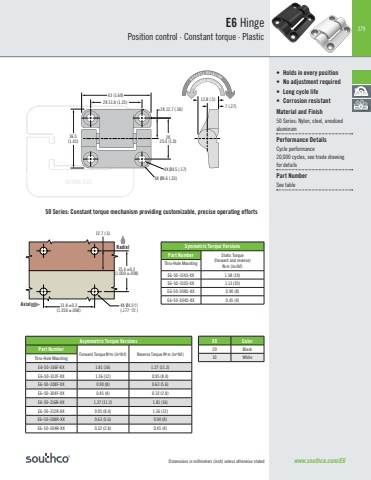

379www.southco.com/E6E6 HingePosition control · Constant torque · Plastic• Holds in every position• No adjustment required• Long cycle life• Corrosion resistantMaterial and Finish50 Series: Nylon, steel, anodized aluminumPerformance DetailsCycle performance20,000 cycles, see trade drawing for detailsPart NumberSee tableSymmetric Torque VersionsPart Number Static Torque(forward and reverse)N•m (in•lbf) Thru-Hole MountingE6-50-314S-XX 1.58 (14)E6-50-310S-XX 1.13 (10)E6-50-308S-XX 0.90 (8)E6-50-304S-XX 0.45 (4)50 Series: Constant torque mechanism providing customizable, precise operating effortsXX Color20 Black 10 WhiteRadialAxial 4X Ø4.5(.177 )12.7 (.5)31.8 ±0.2(1.250 ±.008)7 (.27)12.8 (.5) 2X 31.8 (1.25)43 (1.69)36.5(1.43)4X Ø4.5 (.17)4X Ø8.6 (.33)2X 12.7 (.50)2X25.4 (1.0)25.4 ±0.2(1.000 ±.008)+0.1-0.0+.003-.0004X Ø4.5(.177 )12.7 (.5)31.8 ±0.2(1.250 ±.008)7 (.27)12.8 (.5) 2X 31.8 (1.25)43 (1.69)36.5(1.43)4X Ø4.5 (.17)4X Ø8.6 (.33)2X 12.7 (.50)2X25.4 (1.0)25.4 ±0.2(1.000 ±.008)+0.1-0.0+.003-.000Asymmetric Torque VersionsPart NumberForward Torque N•m (in•lbf) Reverse Torque N•m (in•lbf)Thru-Hole MountingE6-50-316F-XX 1.81 (16) 1.27 (11.2)E6-50-312F-XX 1.36 (12) 0.95 (8.4)E6-50-308F-XX 0.90 (8) 0.63 (5.6)E6-50-304F-XX 0.45 (4) 0.32 (2.8)E6-50-316R-XX 1.27 (11.2) 1.81 (16)E6-50-312R-XX 0.95 (8.4) 1.36 (12)E6-50-308R-XX 0.63 (5.6) 0.90 (8)E6-50-304R-XX 0.32 (2.8) 0.45 (4)RadialDimensions in millimeters (inch) unless otherwise statedACTUAL SIZER E V E R S E R O T A TIO NFORWARD ROTATION
