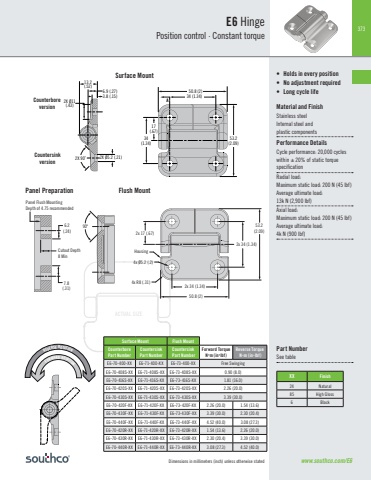

373ACTUAL SIZEwww.southco.com/E6Surface Mount Flush MountCounterborePart NumberCountersinkPart NumberCountersink Part NumberForward TorqueN•m (in•lbf)Reverse Torque Nm (inlbf)E6-70-400-XX E6-71-400-XX E6-73-400-XX Free SwingingE6-70-408S-XX E6-71-408S-XX E6-73-408S-XX 0.90 (8.0)E6-70-416S-XX E6-71-416S-XX E6-73-416S-XX 1.81 (16.0)E6-70-420S-XX E6-71-420S-XX E6-73-420S-XX 2.26 (20.0)E6-70-430S-XX E6-71-430S-XX E6-73-430S-XX 3.39 (30.0)E6-70-420F-XX E6-71-420F-XX E6-73-420F-XX 2.26 (20.0) 1.54 (13.6)E6-70-430F-XX E6-71-430F-XX E6-73-430F-XX 3.39 (30.0) 2.30 (20.4)E6-70-440F-XX E6-71-440F-XX E6-73-440F-XX 4.52 (40.0) 3.08 (27.3)E6-70-420R-XX E6-71-420R-XX E6-73-420R-XX 1.54 (13.6) 2.26 (20.0)E6-70-430R-XX E6-71-430R-XX E6-73-430R-XX 2.30 (20.4) 3.39 (30.0)E6-70-440R-XX E6-71-440R-XX E6-73-440R-XX 3.08 (27.3) 4.52 (40.0)FORWARD ROTATIONREVERSE ROTATION53.2(2.09)17(.67)34(1.34)50.8 (2)A 34 (1.34)2X 90˚ 2X Ø5.2 (.21)2X Ø11(.43)13.2(.52)6.9 (.27) Counterbore 3.8 (.15)versionSurface MountCountersink versionE6 HingePosition control · Constant torque• Holds in every position• No adjustment required• Long cycle lifeMaterial and FinishStainless steelInternal steel andplastic componentsPerformance DetailsCycle performance: 20,000 cycles within ± 20% of static torque specificationRadial load: Maximum static load: 200 N (45 lbf)Average ultimate load: 13k N (2,900 lbf)Axial load: Maximum static load: 200 N (45 lbf)Average ultimate load: 4k N (900 lbf)Part NumberSee tableXX Finish24 Natural85 High Gloss6 BlackPanel Preparation2x 17 (.67)4x Ø5.2 (.2)4x R8 (.31)2x 34 (1.34)2x 34 (1.34)50.8 (2)53.2(2.09)7.8(.31)6.2(.24)90ºFlush MountPanel Flush MountingDepth of 4.75 recommendedCutout Depth8 MinHousing53.2(2.09)17(.67)34(1.34)50.8 (2)A 34 (1.34)2X 90˚ 2X Ø5.2 (.21)2X Ø11(.43)13.2(.52)6.9 (.27)3.8 (.15)Dimensions in millimeters (inch) unless otherwise stated
