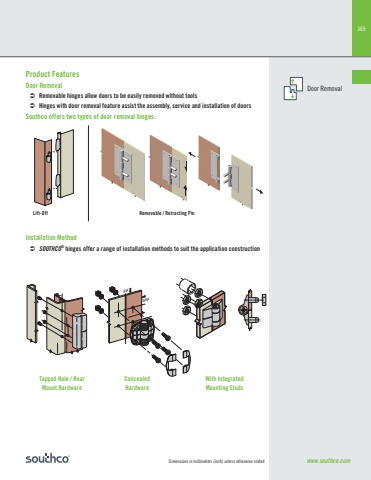

                                    369www.southco.comRADIALAXIALDimensions in millimeters (inch) unless otherwise statedProduct FeaturesDoor Removal Removable hinges allow doors to be easily removed without tools Hinges with door removal feature assist the assembly, service and installation of doorsSouthco offers two types of door removal hinges:Installation Method SOUTHCO® hinges offer a range of installation methods to suit the application constructionLift-Off Removable / Retracting PinTapped Hole / Rear Concealed With IntegratedMount Hardware Hardware Mounting StudsLIFT-OFF INSTALLATION PERMANENT INSTALLATIONDoor Removal
