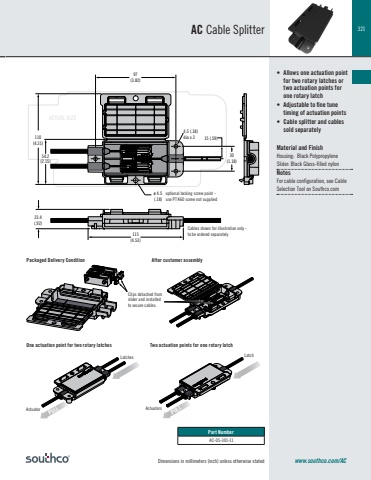

321Dimensions in millimeters (inch) unless otherwise statedPULLPULL15 (.59)30(1.18)97(3.82)110(4.31)54.2(2.15)23.4(.92)115(4.53)ø 4.5(.18)4.5 (.18)dia x 3• Allows one actuation point for two rotary latches or two actuation points for one rotary latch• Adjustable to fine tune timing of actuation points• Cable splitter and cables sold separatelyMaterial and FinishHousing: Black PolypropyleneSlider: Black Glass-filled nylonNotesFor cable configuration, see Cable Selection Tool on Southco.comPart Number AC-05-301-11One actuation point for two rotary latchesPackaged Delivery Condition After customer assemblyTwo actuation points for one rotary latchAC Cable Splitteroptional locking screw point - use PT K60 screw not suppliedCables shown for illustration only - to be ordered separatelyClips detached from slider and installed to secure cables.Latches LatchActuator Actuatorswww.southco.com/ACPULLPULLPULLPULLACTUAL SIZE
