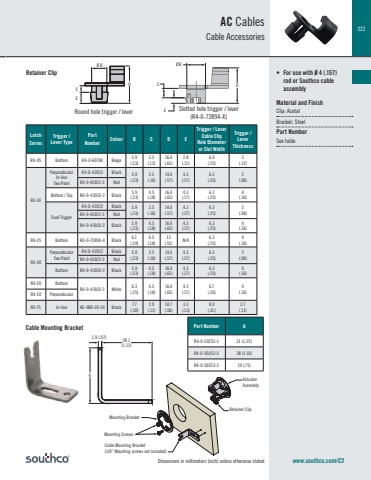

323Dimensions in millimeters (inch) unless otherwise statedAC CablesCable AccessoriesPart Number AR4-0-50253-1 31 (1.22)R4-0-50253-2 28 (1.10)R4-0-50253-3 19 (.75)LatchSeriesTrigger / Lever TypePartNumber Colour B C D ETrigger / Lever Cable Clip Hole Diameter or Slot WidthTrigger / LeverThicknessR4-05 Bottom R4-0-60784 Beige 5.9 (.23)3.5 (.13)16.4 (.65)2.8 (.11)6.4(.25)3 (.12)R4-10PerpendicularIn-lineTwo PointR4-0-43922 Black 5.9 (.23)2.5 (.10)14.4 (.57)4.3 (.17)6.3 (.25)2 (.08) R4-0-43922-3 RedBottom / Top R4-0-43922-2 Black 5.9 (.23)4.5 (.18)16.4 (.65)4.3 (.17)6.3 (.25)4(.16)Dual TriggerR4-0-43922 Black 5.9 (.23)2.5 (.10)14.4 (.57)4.3 (.17)6.3 (.25)2 (.08) R4-0-43922-3 RedR4-0-43922-2 Black 5.9 (.23)4.5 (.18)16.4 (.65)4.3 (.17)6.3 (.25)4(.16)R4-25 Bottom R4-0-72894-4 Black 6.1(.24)4.5(.18)13(.51) N/A 6.3 (.25)4(.16)R4-30PerpendicularTwo PointR4-0-43922 Black 5.9 (.23)2.5 (.10)14.4 (.57)4.3 (.17)6.3 (.25)2 (.08) R4-0-43922-3 RedBottom R4-0-43922-2 Black 5.9 (.23)4.5 (.18)16.4 (.65)4.3 (.17)6.3 (.25)4(.16)R4-20 BottomR4-0-43922-1 White 6.3 (.25)4.5 (.18)16.4 (.65)4.3 (.17)6.7 (.26)4 (.16) R4-50 PerpendicularR4-75 In-line AC-9BX-20-34 Black 7.7(.30)2.9(.11)14.7(.58)3.3(.13)8.0(.31)2.7(.11)• For use with Ø 4 (.157)rod or Southco cable assemblyMaterial and FinishClip: AcetalBracket: SteelPart NumberSee tableRetainer ClipRound hole trigger / leverCable Mounting BracketA1.9 (.07) 28.1(1.11)www.southco.com/C3DCØ BEMounting BracketRetainer ClipActuator AssemblyMounting ScrewsCable Mounting Bracket(1/8” Mounting screws not included)ØBED CSlotted hole trigger / lever(R4-0-72894-X)
