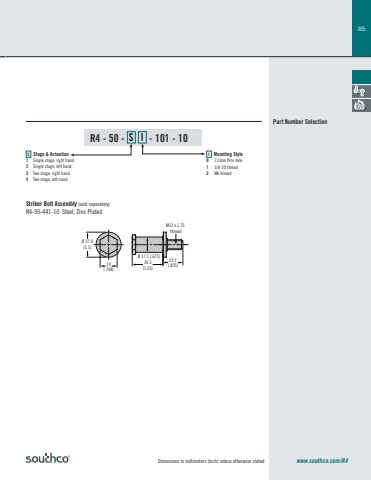

305Dimensions in millimeters (inch) unless otherwise stated www.southco.com/R4Part Number Selection19(.748)Ø 17.1 (.675)34.5(1.35)22.2(.875)Ø 27.9(1.1)M12 x 1.75 threadStriker Bolt Assembly (sold separately)R4 - 50 - S I - 101 - 10 S Stage & Actuation 1 Single stage, right hand2 Single stage, left hand3 Two stage, right hand4 Two stage, left handI Mounting Style0 7.2mm thru hole1 1/4-20 thread2 M6 threadR4-90-441-10 Steel, Zinc Plated
