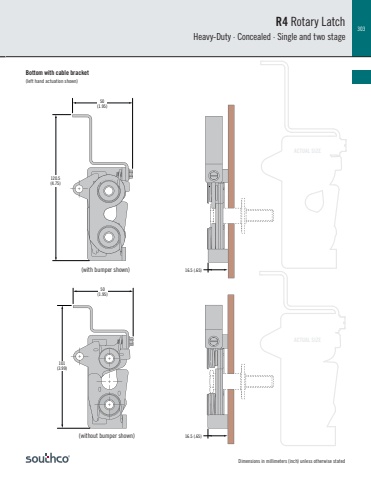

303Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZEBottom with cable bracket(left hand actuation shown)50(1.95)101(3.99)50(1.95)120.5(4.75)16.5 (.65)16.5 (.65)R4 Rotary LatchHeavy-Duty · Concealed · Single and two stage(with bumper shown)(without bumper shown)
