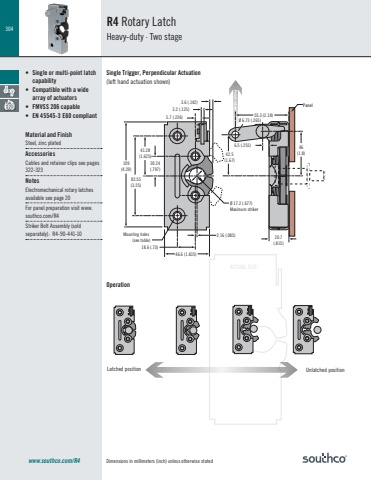

304www.southco.com/R4 Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZE• Single or multi-point latch capability• Compatible with a wide array of actuators• FMVSS 206 capable• EN 45545-3 E60 compliantMaterial and FinishSteel, zinc platedAccessoriesCables and retainer clips see pages 322-323NotesElectromechanical rotary latches available see page 20For panel preparation visit www.southco.com/R4Striker Bolt Assembly (sold separately): R4-90-441-10R4 Rotary LatchHeavy-duty · Two stagePanelPull direction46(1.8)6.5 (.255)42.5(1.67)55.3 (2.18)2.16 (.085)18.6 (.73)46.6 (1.835)Mounting holes (see table)Ø 17.2 (.677)Maximum striker20.24(.797)41.28(1.625)82.55(3.25)109(4.29)3.6 (.142)3.2 (.125)5.7 (.226)20.7(.815)Ø 6.73 (.265)Single Trigger, Perpendicular Actuation(left hand actuation shown)Latched position Unlatched positionOperation
