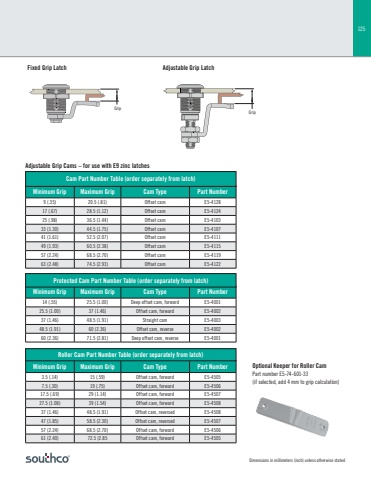

125Dimensions in millimeters (inch) unless otherwise statedMinimum Grip Maximum Grip Cam Type Part Number9 (.35) 20.5 (.81) Offset cam E5-412817 (.67) 28.5 (1.12) Offset cam E5-412425 (.98) 36.5 (1.44) Offset cam E5-410333 (1.30) 44.5 (1.75) Offset cam E5-410741 (1.61) 52.5 (2.07) Offset cam E5-411149 (1.93) 60.5 (2.38) Offset cam E5-411557 (2.24) 68.5 (2.70) Offset cam E5-411963 (2.48) 74.5 (2.93) Offset cam E5-4122Minimum Grip Maximum Grip Cam Type Part Number14 (.55) 25.5 (1.00) Deep offset cam, forward E5-400125.5 (1.00) 37 (1.46) Offset cam, forward E5-400237 (1.46) 48.5 (1.91) Straight cam E5-400348.5 (1.91) 60 (2.36) Offset cam, reverse E5-400260 (2.36) 71.5 (2.81) Deep offset cam, reverse E5-4001Minimum Grip Maximum Grip Cam Type Part Number3.5 (.14) 15 (.59) Offset cam, forward E5-45057.5 (.30) 19 (.75) Offset cam, forward E5-450617.5 (.69) 29 (1.14) Offset cam, forward E5-450727.5 (1.08) 39 (1.54) Offset cam, forward E5-450837 (1.46) 48.5 (1.91) Offset cam, reversed E5-450847 (1.85) 58.5 (2.30) Offset cam, reversed E5-450757 (2.24) 68.5 (2.70) Offset cam, forward E5-450661 (2.40) 72.5 (2.85 Offset cam, forward E5-4505Optional Keeper for Roller CamPart number E5-74-601-33(if selected, add 4 mm to grip calculation)Fixed Grip LatchAdjustable Grip Cams – for use with E9 zinc latchesAdjustable Grip LatchCam Part Number Table (order separately from latch)Protected Cam Part Number Table (order separately from latch)Roller Cam Part Number Table (order separately from latch)Grip Grip
