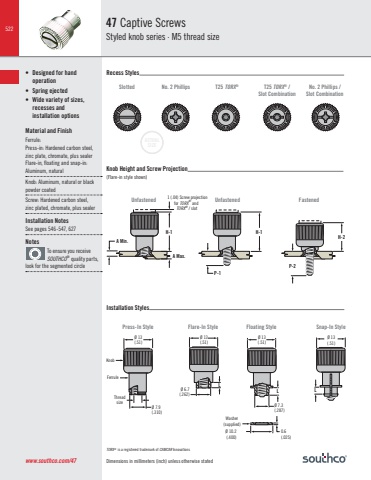

522Dimensions in millimeters (inch) unless otherwise statedPress-In Style Flare-In Style Floating Style Snap-In StyleØ 13(.51)ThreadsizeØ 7.9 (.310)FerruleKnobØ 13(.51)LØ 6.7(.262) L0.6 (.025)Ø 7.3 (.287)Washer(supplied)Ø 10.2 (.400)Ø 13(.51)LØ 13(.51)47 Captive ScrewsStyled knob series · M5 thread size• Designed for hand operation• Spring ejected• Wide variety of sizes, recesses and installation optionsMaterial and FinishFerrule: Press-in: Hardened carbon steel, zinc plate, chromate, plus sealerFlare-in, floating and snap-in: Aluminum, naturalKnob: Aluminum, natural or black powder coatedScre Hardened carbon steel, zinc plated, chromate, plus sealerInstallation NotesSee pages 546-547, 627NotesTo ensure you receive SOUTHCO® quality parts, look for the segmented circleSlotted No. 2 Phillips T25 TORX® T25 TORX® /Slot CombinationNo. 2 Phillips /Slot CombinationH-2P-2P-1H-1 H-1A Min.A Max.Unfastened Unfastened Fastened 1 (.04) Screw projectionfor TORX® and TORX® / slotACTUALSIZERecess StylesKnob Height and Screw Projection(Flare-in style shown)Installation Styleswww.southco.com/47TORX® is a registered trademark of CAMCAR Innovations
